51 16 196 - Removing and installing/replacing (both) covers for centre armrest

51 16 196 - Removing and installing/replacing (both) covers for centre armrest

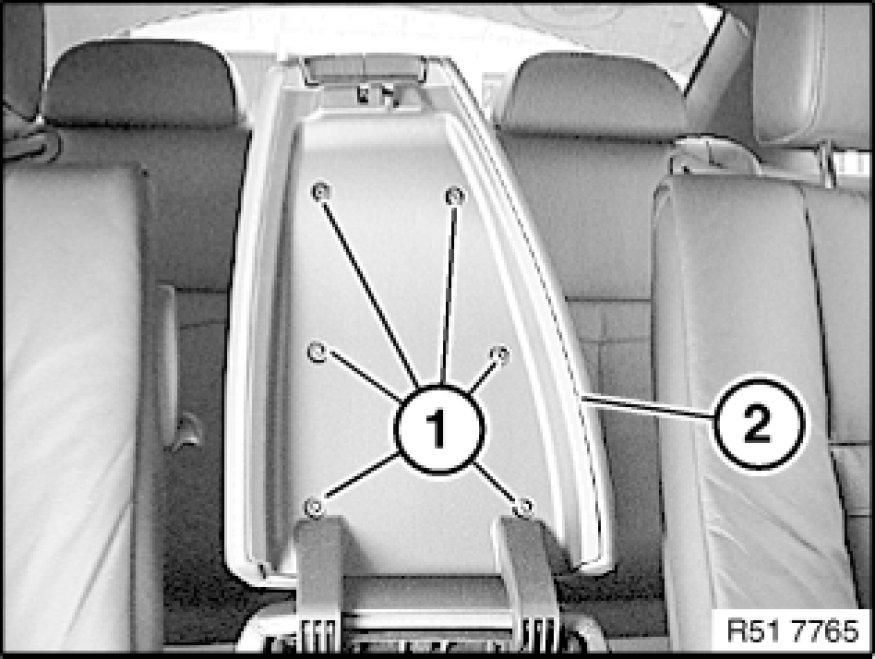

Open cover.
Release screws (1).
Remove cover (2).

Note:
Illustration shows the front cover, remove the rear cover in the same way.
