License Plate Bracket: Service and Repair

51 11 ... - Installing/replacing license plate (without base)





Initial fitting:

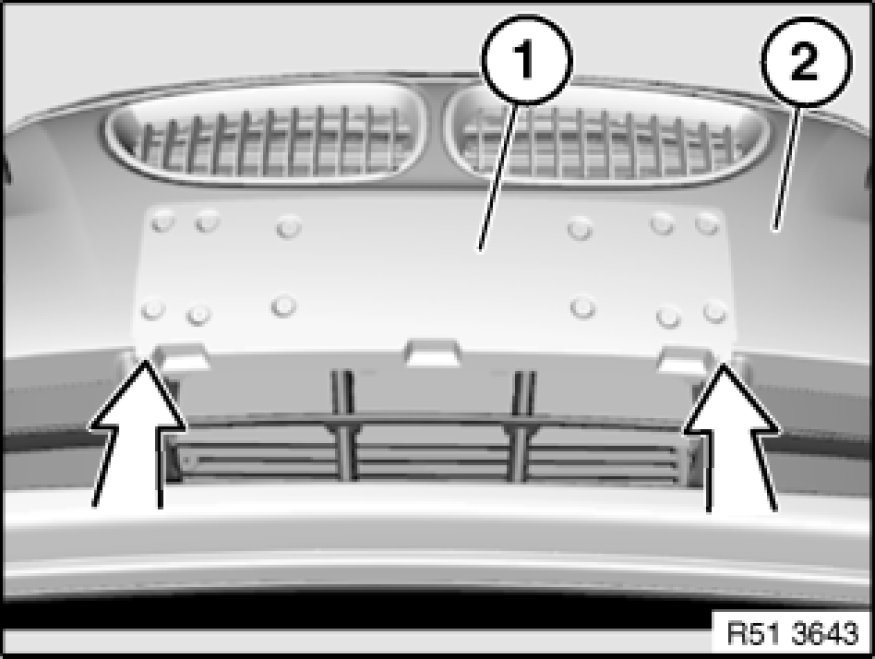

Place drilling hole template (1) on bumper (2).

Note:
Hole diameter = 2.5 mm (see template).

Drill holes according to license plate.
Remove template (1).
Secure license plate with screws provided.
Tightening torque 51 11 7AZ [1][2]Front Bumper.
Fit protective caps.





Repairing thread:
Drill out defective hole in bumper (2) to 9.5 mm diameter.
Insert blind rivet nut (1)*.
Secure license plate (3) with license plate screw (4)*.
Tightening torque 51 11 8AZ [1][2]Front Bumper.

Note:
* Sourcing reference: BMW Parts Service
