51 14 110 Removing and Installing/Replacing Rear Model Designation

51 14 110 - Removing and installing/replacing rear model designation





Important!
The "Instructions for number/letter combination cementing 51 14 ... Instructions For Attaching Number/Letter Designation Combination" serve as the basis for these repair instructions and must be followed without fail.

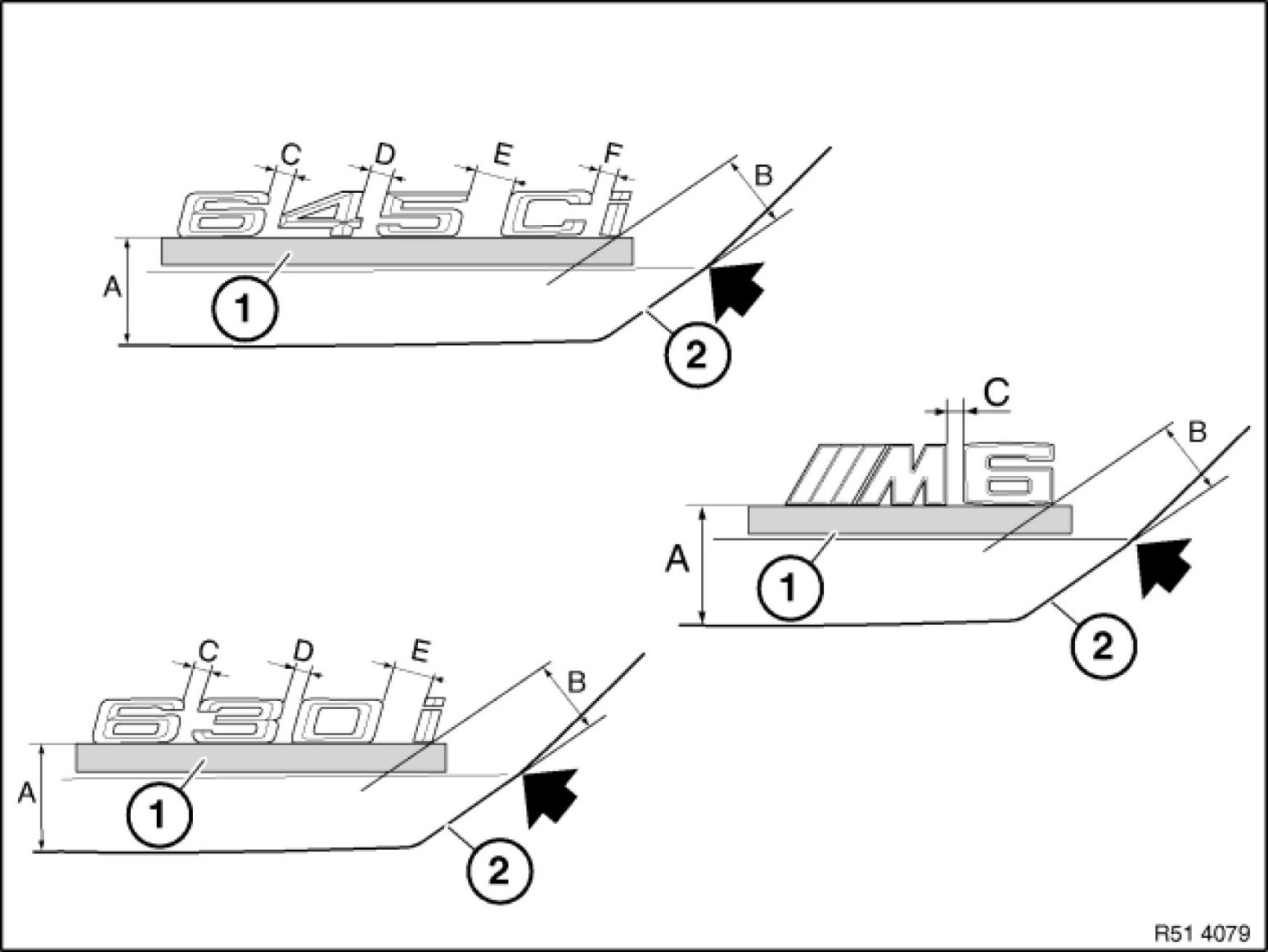

Fitting dimensions (E63, E64):





Stick on adhesive tape (1) up to top edge "A". Mark measurement "B" from edge of rear lid (2) on adhesive tape (1).

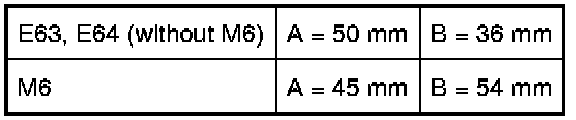

Dimensions:





Note:
Measurements C, D, E and F are for information purposes only, as determined by carrier film.

630 i, 650 i: C = 6 mm, D = 7.0 mm, E = 22 mm

645 Ci: C = 7.5 mm, D = 11 mm, E = 20 mm, F = 7.5 mm

M6: C = 7.5 mm
