51 14 000 Removing and Installing/Replacing Front BMW Badge

51 14 000 - Removing and installing/replacing front BMW badge





Special tools required:
- 00 9 318 00 9 318 Multipurpose Wedge





Important!
Risk of damage!

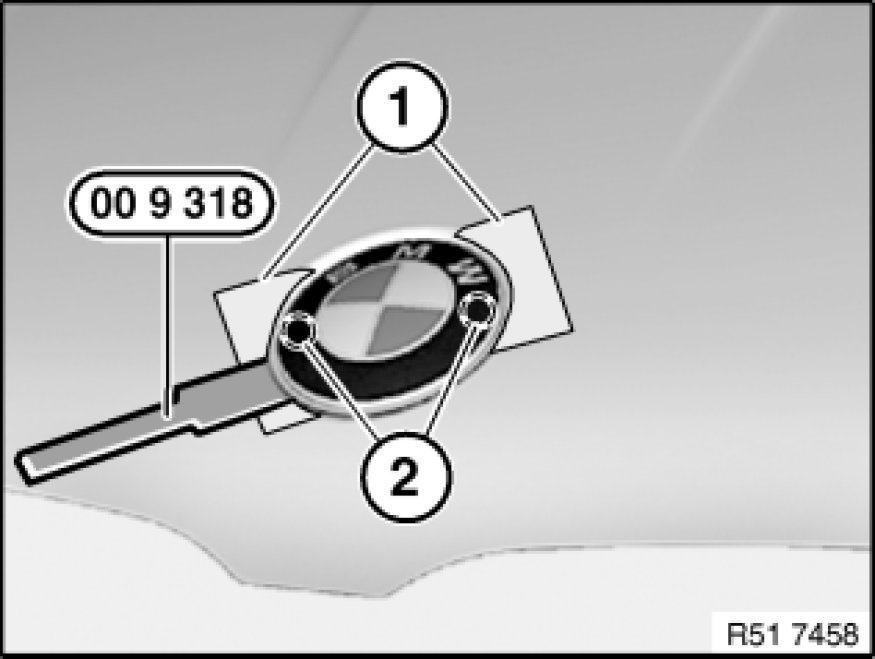

To avoid damaging the paintwork on the engine hood/bonnet, tape off edge areas (1) to sides of guide pins.

So as not to subject the BMW badge to excessive deformation, lever out the badge with special tool 00 9 318 00 9 318 Multipurpose Wedge at guide pins (2).





Installation Note:

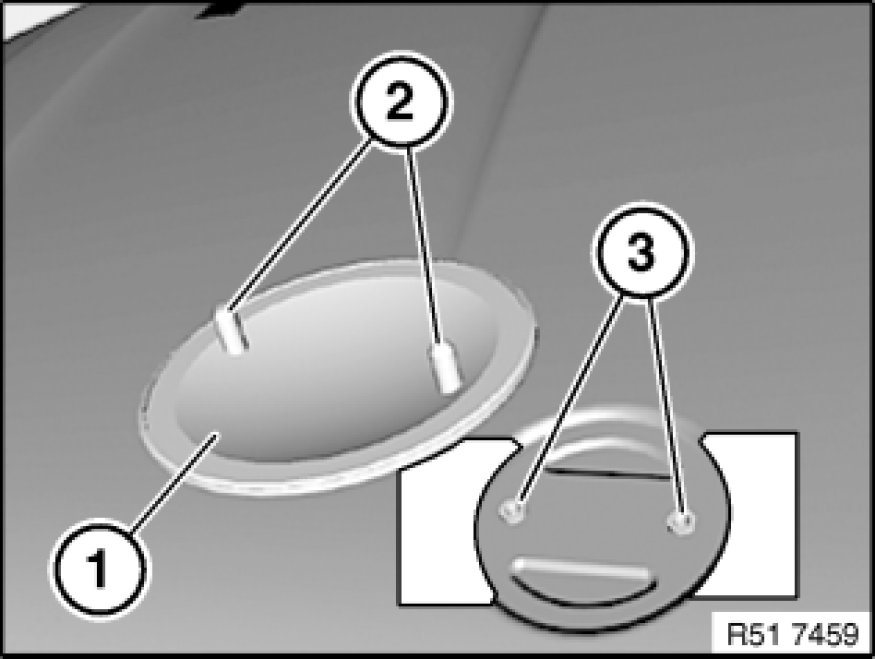

Following parts must not be damaged or missing:

1 - Badge
2 - Guide pins
3 - Grommets
