Trunk / Liftgate Striker: Service and Repair

51 24 130 - Removing and installing/replacing striker for rear lid lock





Necessary preliminary tasks:
- Remove trim on rear apron 51 46 050 Removing and Installing/Replacing Top Trim on Rear Apron.

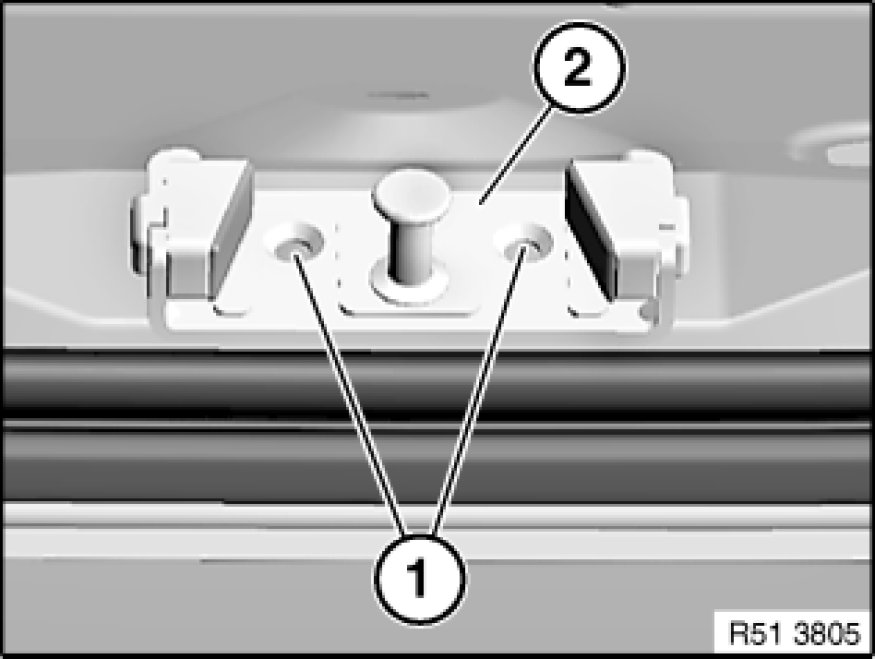

Release screws (1).
Remove striker for rear lid lock (2) (lower section of rear lid lock).

Installation Note:
Adjust rear lid lock Adjustments.





Important!
Striker and rear lid lock must not be greased.
