Trunk / Liftgate Latch: Service and Repair

51 24 100 - Removing and installing/replacing rear lid lock (upper section)





Necessary preliminary tasks:
- Remove panel for rear lid

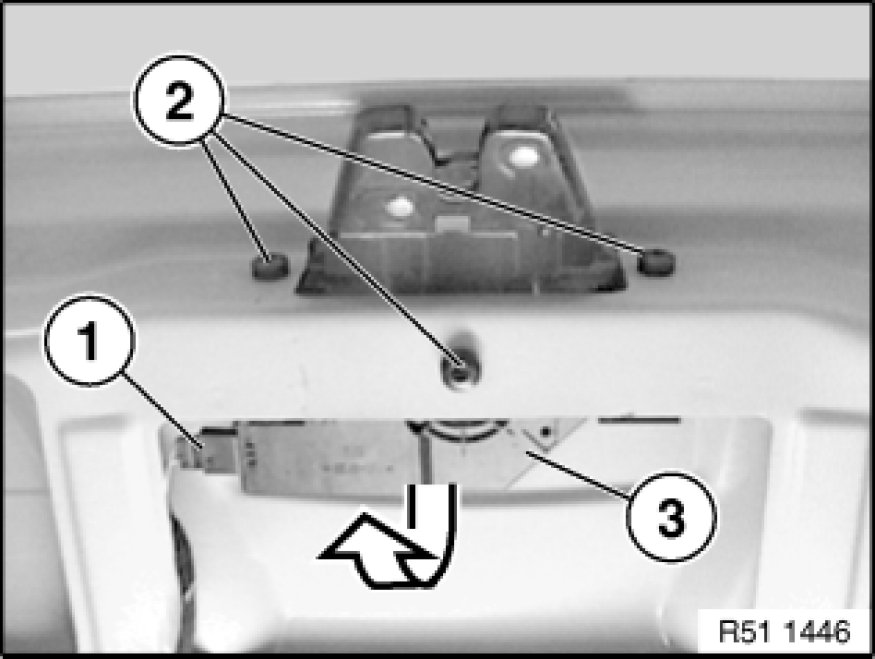

Release screws (2) and feed out upper section of rear lid lock (3).
Disconnect plug connection (1).

Installation:
Use self-tapping screws when replacing upper section of rear lid lock (3).
Tightening torque 51 24 1AZ (E82, E88, E90, E92).
Tightening torque 51 24 5AZ 51 24 Rear Lid Locks (E60, E63, E64).

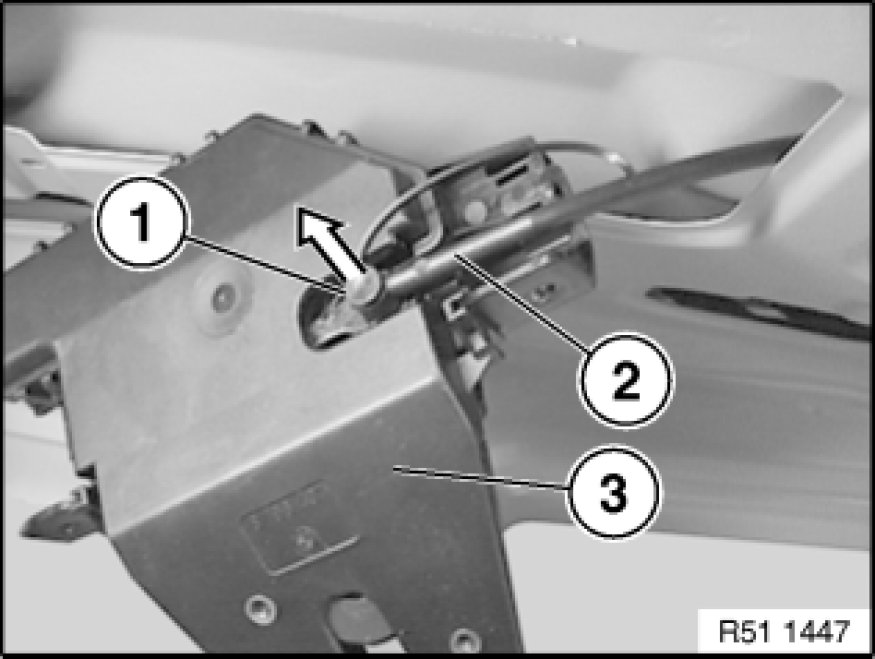

Remove lock (1).
Lever out actuating rod (2) and remove upper section of rear lid lock (3).

Installation:
Make sure lock (1) is correctly seated.





Installation:
Perform function check with rear lid open.
