Removing and Installing/Replacing Servodrive in Storage Compartment

67 11 610 - Removing and installing/replacing servodrive in storage compartment





Necessary preliminary tasks:
- Disconnect battery negative lead Disconnecting and Connecting Battery Negative Lead

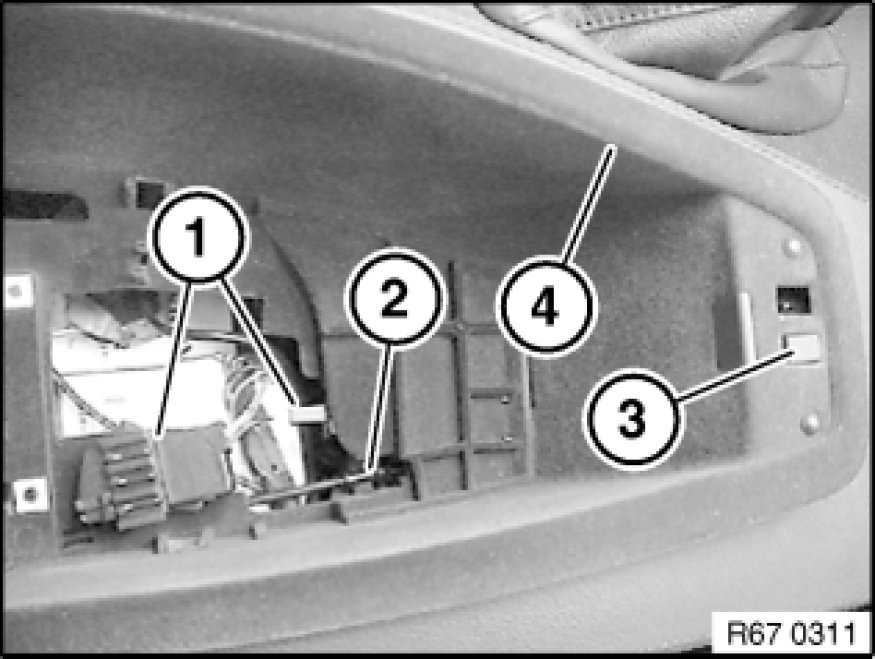

Disconnect plug connections (1)
Disconnect Bowden cable (2).
Press in button (3) and lift storage compartment (4) out of centre armrest.

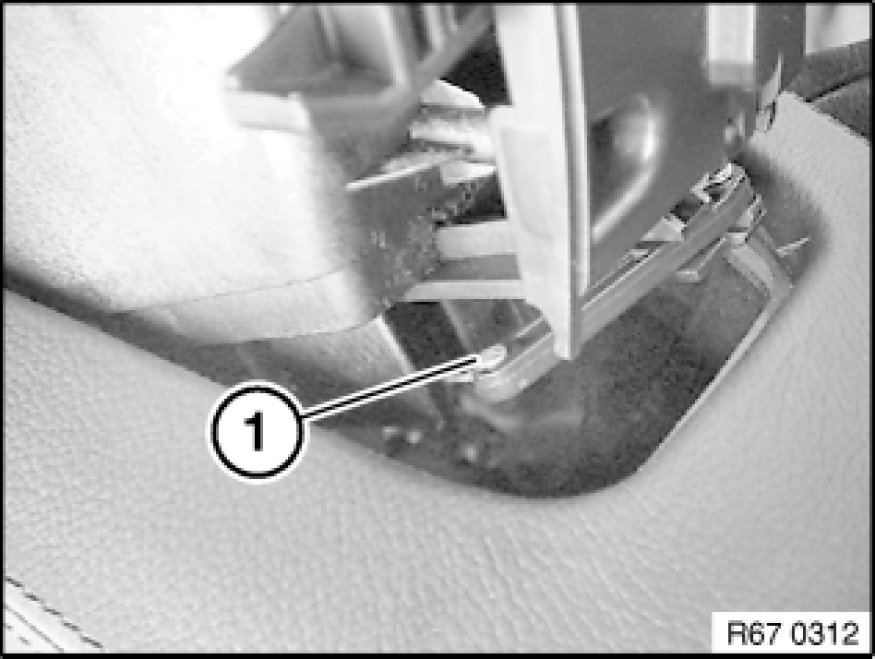

Disconnect Bowden cable (1).

Installation:
Ensure correct cable routing.

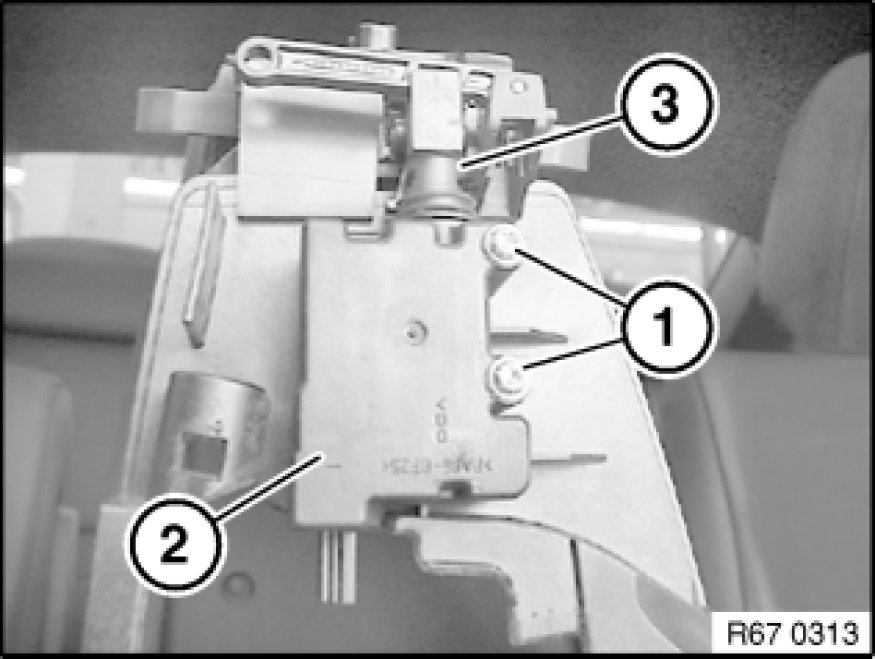

Release screws (1).
Pull servodrive (2) with locator (3) forwards from guide.
