Front Door Weatherstrip: Service and Repair

51 21 370 - Removing and installing/replacing cover (seal) on front door at bottom left or right

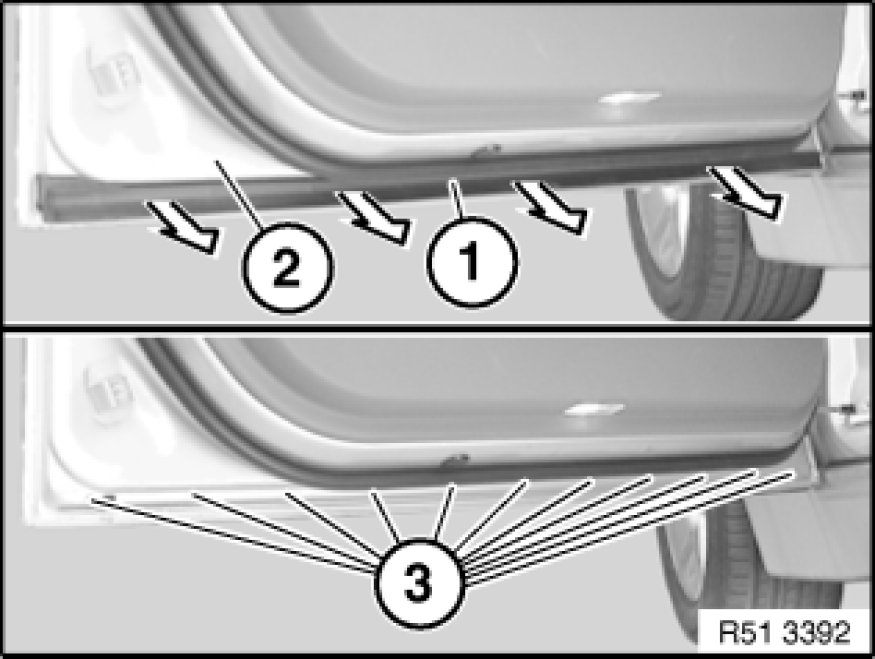

Detach cover (1) in direction of arrow from front door (2).

Installation:
Start clipping in cover (1) at rear (B-pillar) (risk of damage).
Clip clips of cover (1) correctly into bores (3).





Installation:

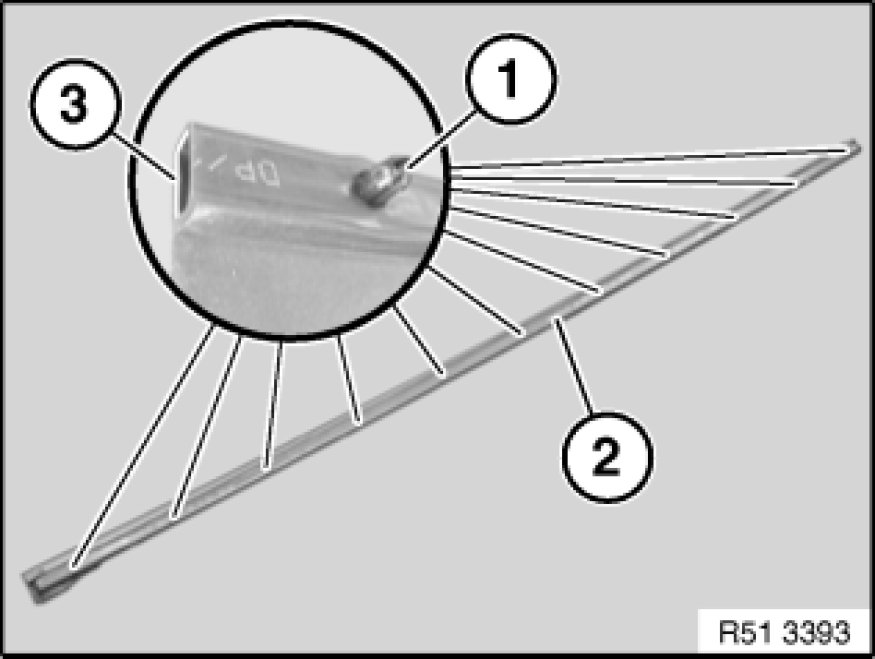

Clips (1) of cover (2) must not be damaged.
Cover (2) has an aluminum insert (3).
Only press on clips (1) when installing otherwise cover (2) will become uneven.
