Removing and Installing/Replacing Speaker (Mid-Range Speaker In Rear Side Trim Panel)




65 13 090 - Removing and installing/replacing speaker (mid-range speaker in rear side trim panel)





Necessary preliminary tasks:
- Remove rear side trim panel Removing and Installing Rear Left or Right Side Trim Panel.

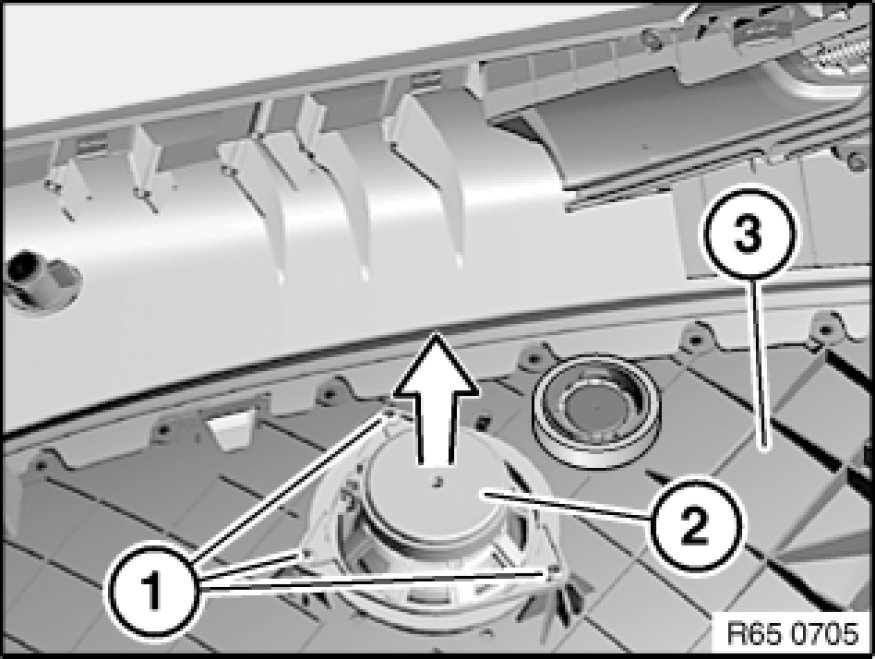

Release screws (1).
Remove speaker (2) in direction of arrow from rear side trim panel (3).
