Removing and Installing / Replacing Speaker (Mid-Range Speaker in Front Door)




65 13 070 - Removing and installing/replacing speaker (mid-range speaker, door at front)





Necessary preliminary tasks:
- Remove front door trim panel Removing and Installing Left or Right Front Door Trim Panel.

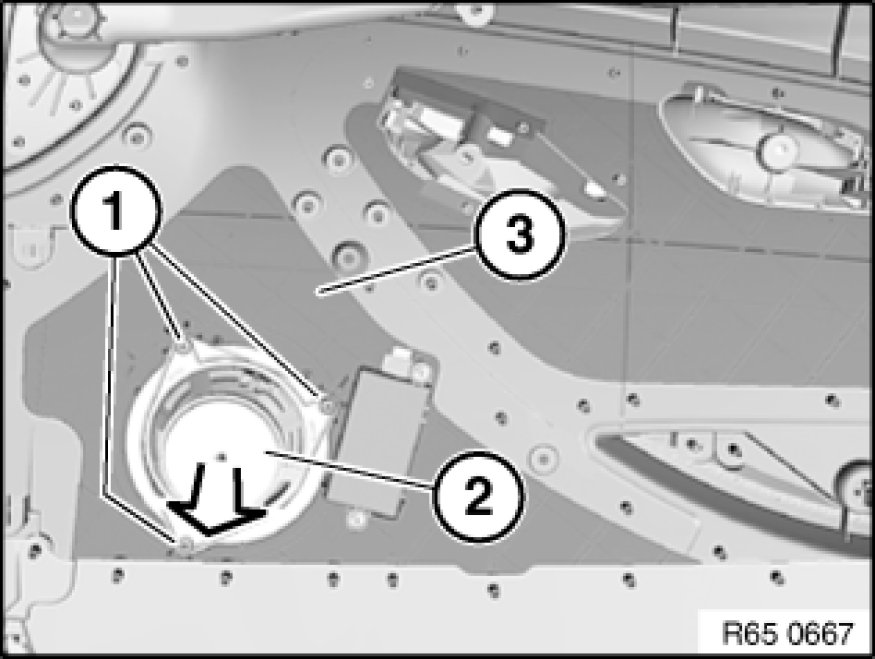

Release screws (1).
Remove speaker (2) in direction of arrow from front door trim panel (3).
