Removing and Installing/Replacing DAB Tuner

65 12 230 - Removing and installing DAB tuner





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Note:
Follow instructions for handling optical fibers. 61 00 ... Notes on Handling Optical Fibers





Necessary preliminary tasks:
- Remove luggage compartment wheel arch trim on left Disconnecting and Connecting Battery Negative Lead.
- Disconnect battery negative lead

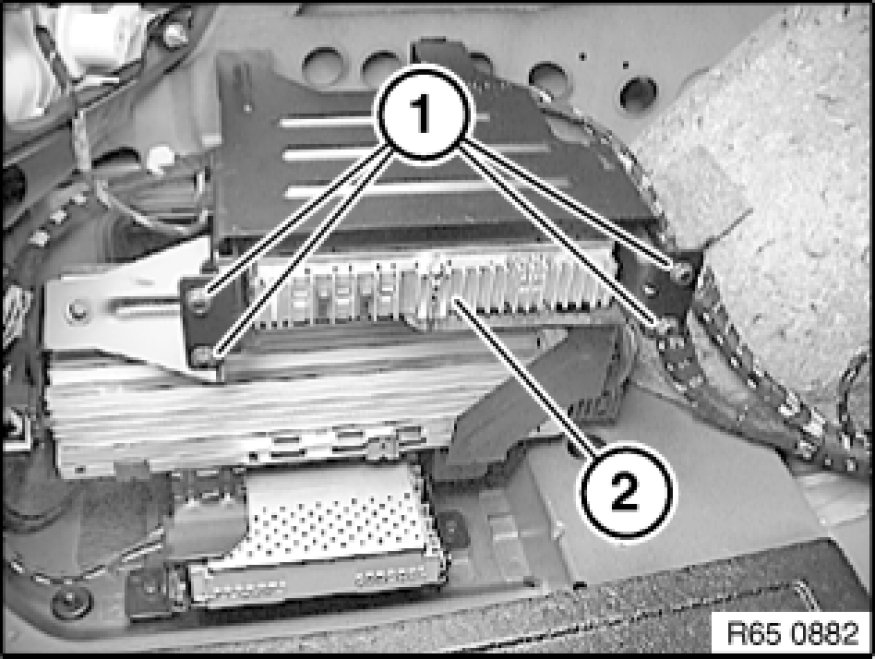

Release nuts (1) and remove bracket with DAB radio (2).

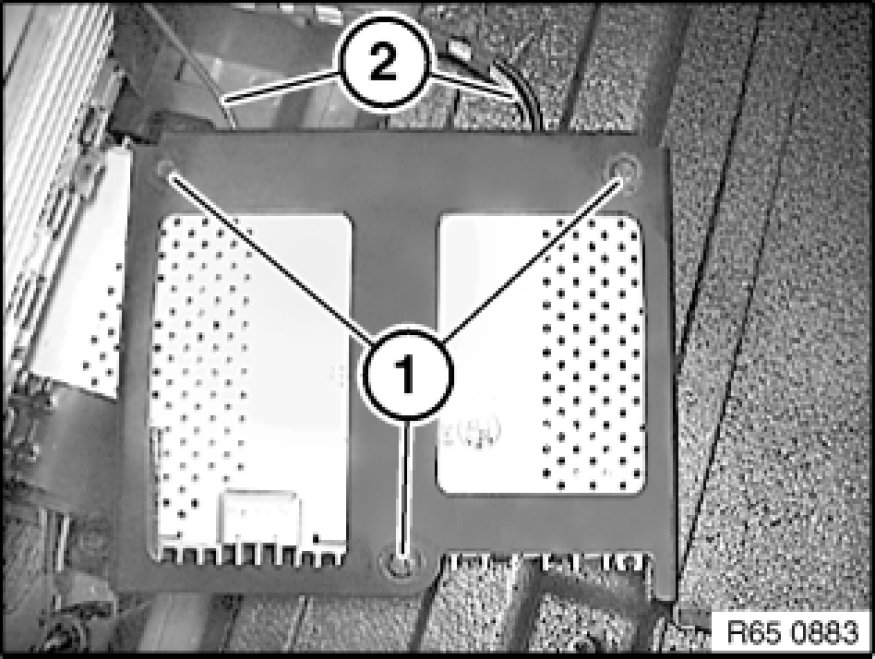

Release screws (1) and disconnect plug connections (2).
