Removing and Installing/Replacing CD Changer

65 11 072 - Removing and installing/replacing CD changer





Important!
Read and comply with notes on protection against electrostatic damage (ESD protection) 61 35 ... Notes on ESD Protection (Electro Static Discharge).





Necessary preliminary tasks:
- Remove luggage compartment floor trim 51 47 101 Removing and Installing/Replacing Luggage Compartment Floor Trim Panel
- Disconnect battery negative lead Instructions for Disconnecting and Connecting Battery





Note:
Comply with notes and instructions on handling optical waveguides 61 00 ... Notes on Handling Optical Fibers.

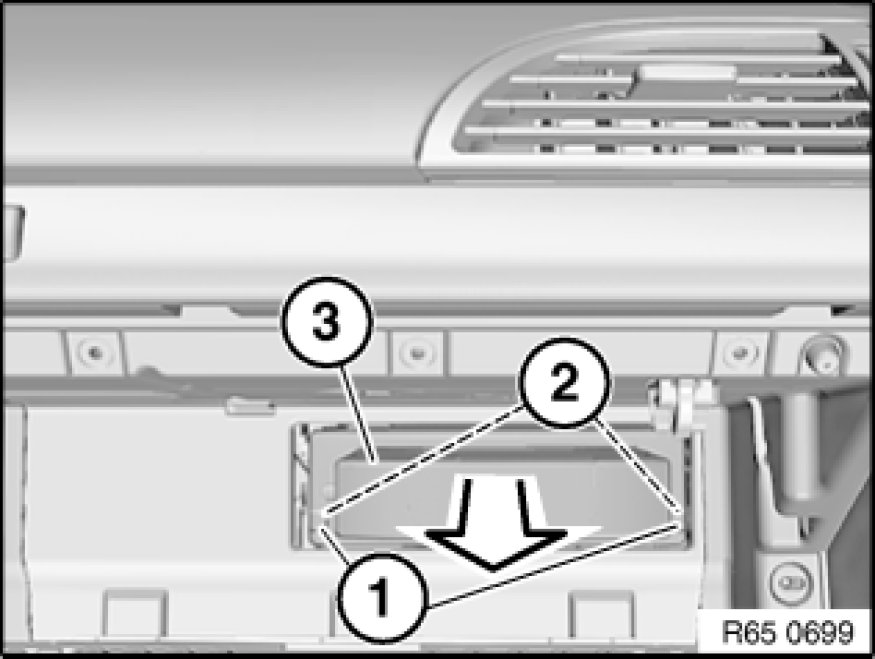

Fold back covers (1) on CD changer (3).
Release screws (2).
Pull back CD changer (3) slightly.
Unlock and disconnect associated plug connection, remove CD changer (3).

Installation Note:
Tightening torque 65 11 1AZ [1][2]Radio, Stereo, and Compact Disc.
Observe tightening torque (risk of damage).





Installation Note:
When pushing CD changer in, lay associated wire harness carefully by hand. For this purpose, in advance:
Remove bottom right trim panel from instrument panel 51 45 181 Removing and Installing/Replacing Bottom Right Trim For Instrument Panel.





Replacement:
Carry out programming/coding Programming and Relearning.
