Exterior View Display Module: Service and Repair

61 31 233 - Removing and installing/replacing Lane Departure Warning motor electrics (sport steering wheel)





Necessary preliminary tasks:
- Remove decorative bar from steering wheel

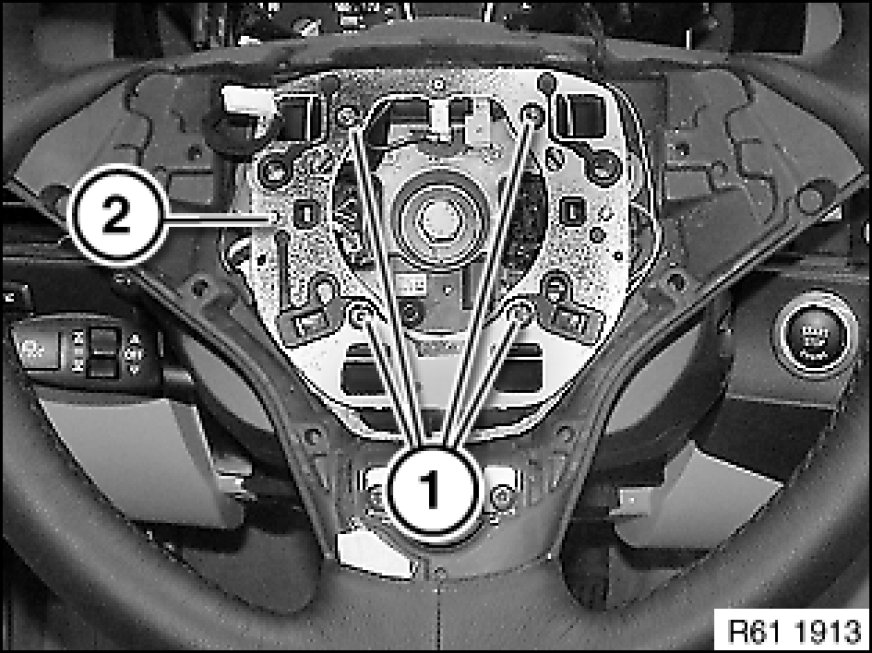

Release screws (1) and remove retaining plate (2).
Tightening torque 32 33 2AZ [1][2]Specifications.

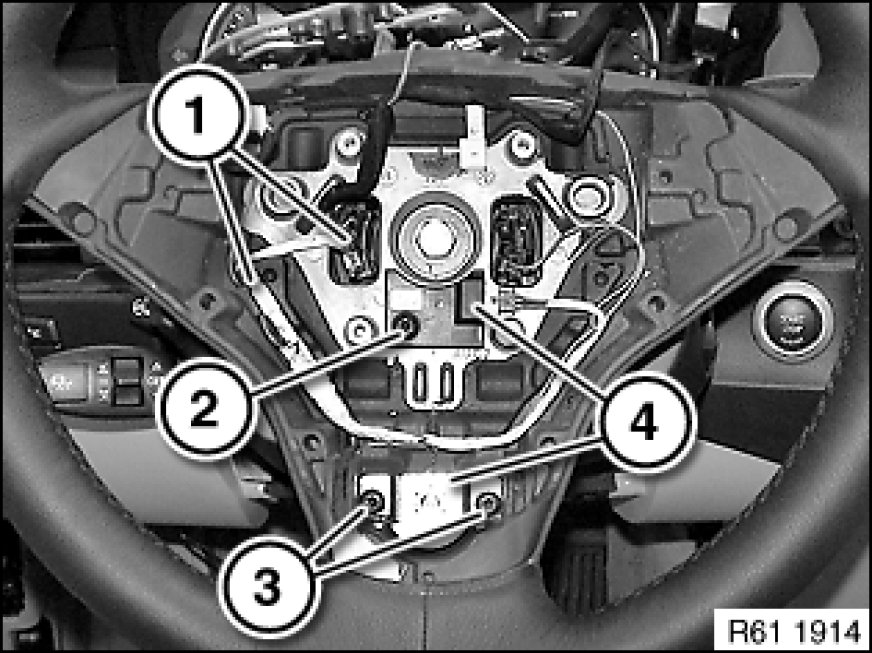

Disconnect plug connection (1).
Release screw (2).
Release screws (3) and remove motor electrics (4) complete with electrical wires.

Installation:
Replace screws (2 and 3).
- (2) Tightening torque 32 33 3AZ [1][2]Specifications
- (3) Tightening torque 32 33 4AZ [1][2]Specifications
Ensure correct cable routing.
