Removing and Installing/Replacing Hands-Free System Speaker

84 31 020 - Removing and installing/replacing hands-free system speaker





Necessary preliminary tasks:
- Remove trim panel for pedal assembly 51 45 185 Removing and Installing/Replacing Panel For Pedals.

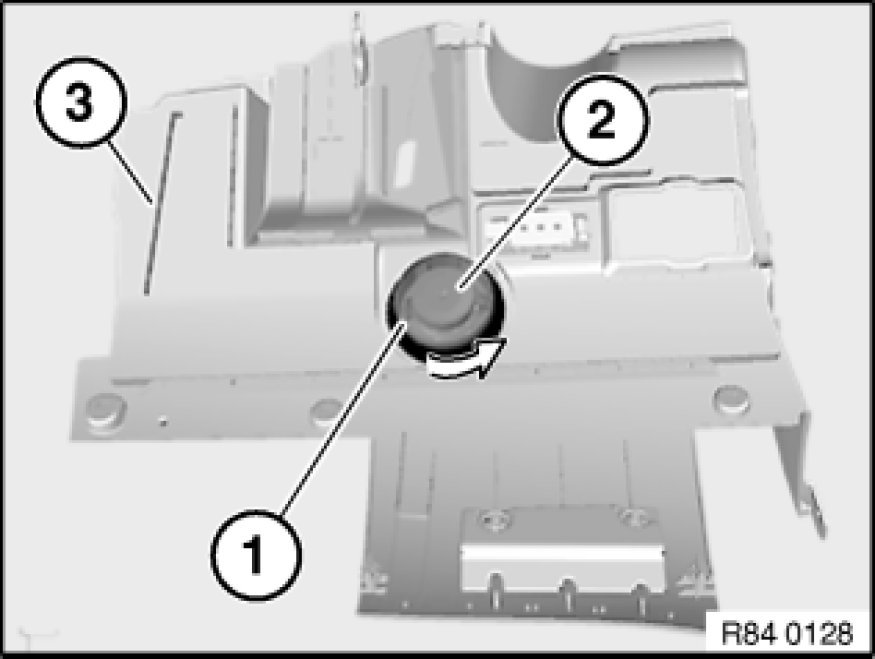

Screw on threaded ring (1) in direction of arrow and remove hands-free system speaker (2) from trim for pedal assembly (3).
