Removing and Installing/Replacing Eject Box

84 11 519 - Removing and installing or replacing eject box





Special tools required:
- 00 9 341





Necessary preliminary tasks:
- Version with USB audio interface:
Remove USB/audio interface connecting socket Service and Repair

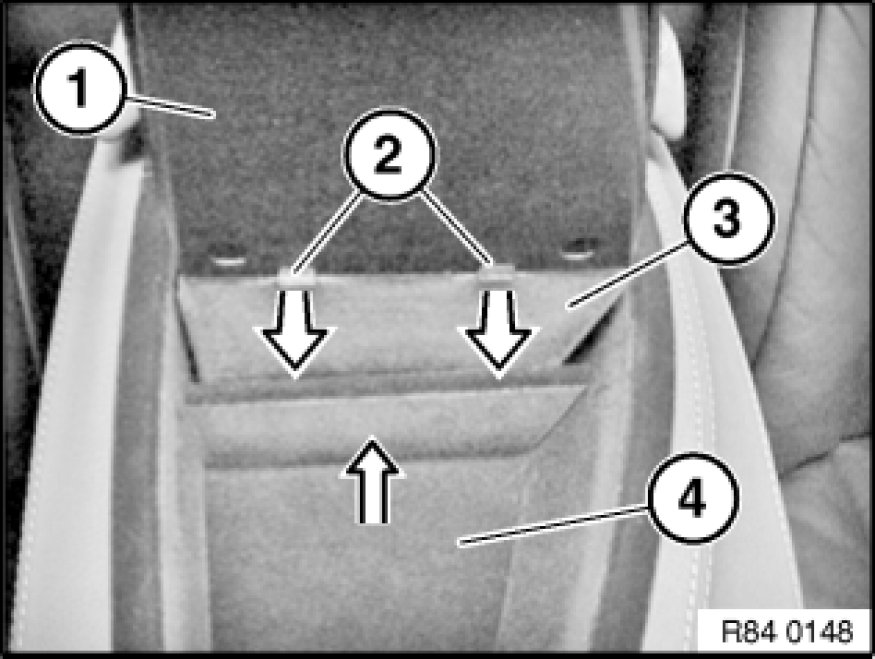

Release catch (2) of cover (3) from telephone mounting (1).
Unclip rear centre console base (4) in direction of arrow.
Feed out centre console base (4) with cover (3) and remove.

Installation:
Make sure centre console base (4) and cover (3) are correctly seated.





Installation:

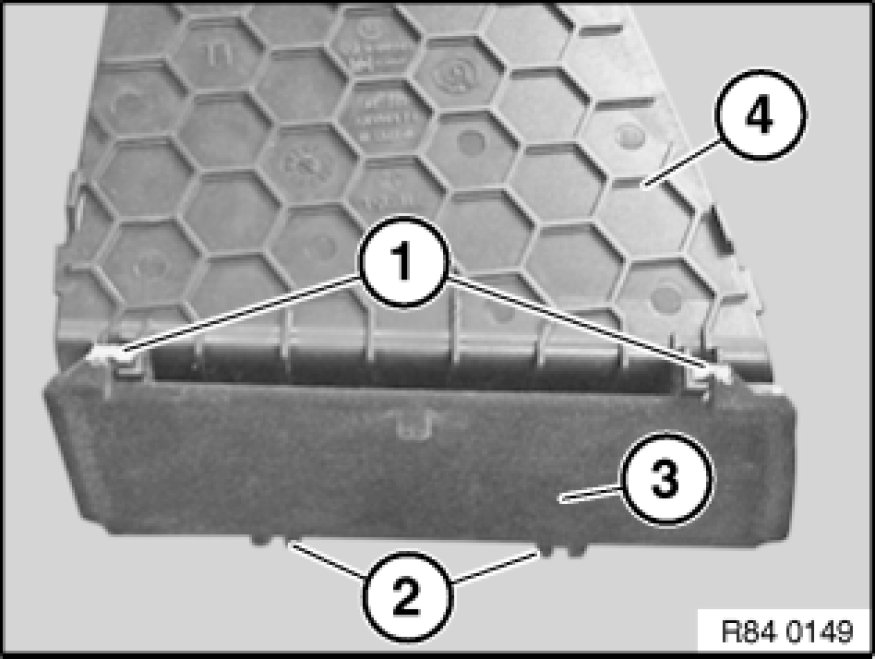

Make sure guide pins (1) of cover (3) are correctly seated in guide of centre console base (4).
Guide pins (1) and catches (2) of cover (3) must not be damaged or missing.

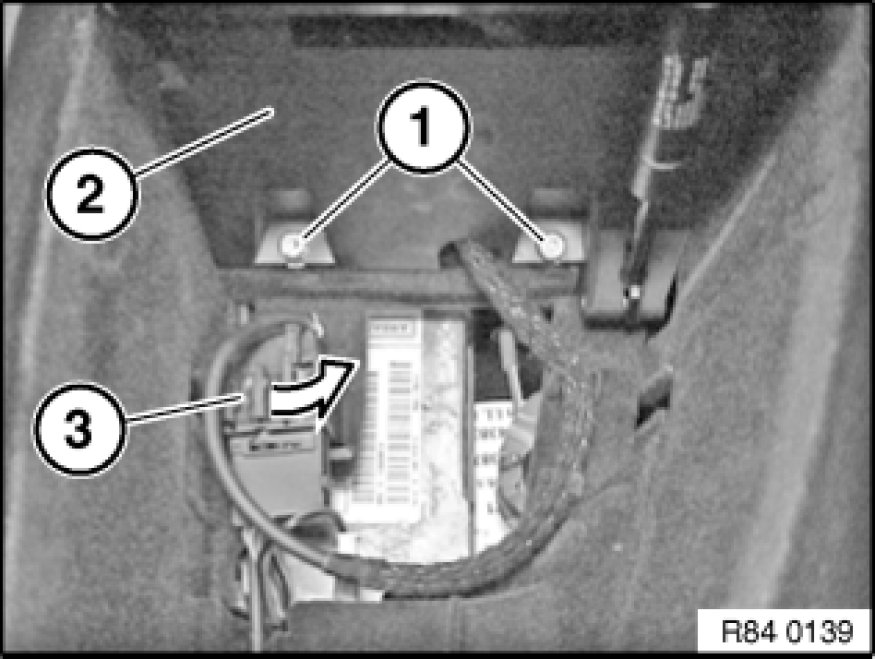

Turn plug connection (3) in counterclockwise direction and feed out in direction of arrow.
Disconnect plug connection (3).
Unclip plug connection for aerial cable and disconnect.
Release screws (1).
Remove telephone mounting (2).

Installation:
Make sure wiring harnesses are correctly routed.

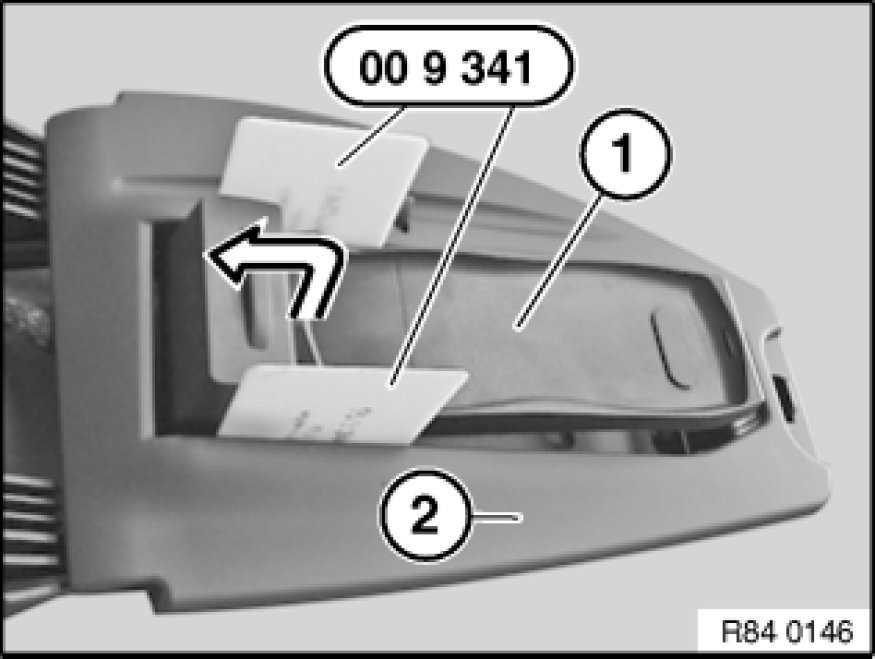

Unlock eject box (1) with special tool 00 9 341 and feed towards top rear out of telephone mounting (2).

Installation:
Make sure eject box (1) is correctly seated in telephone mounting (2).





Installation:

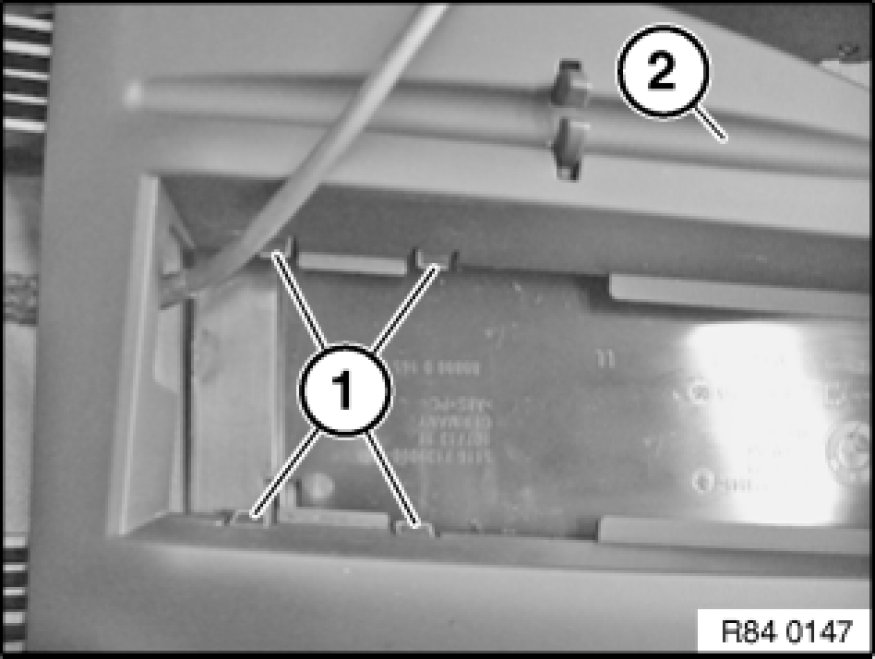

Catches (1) on telephone mounting (2) must not be damaged or missing.
