Oscilloscope Patterns and Waveforms

Comparison images EWS oscilloscope measurement


Important
During the measurement, the DSC must be connected.

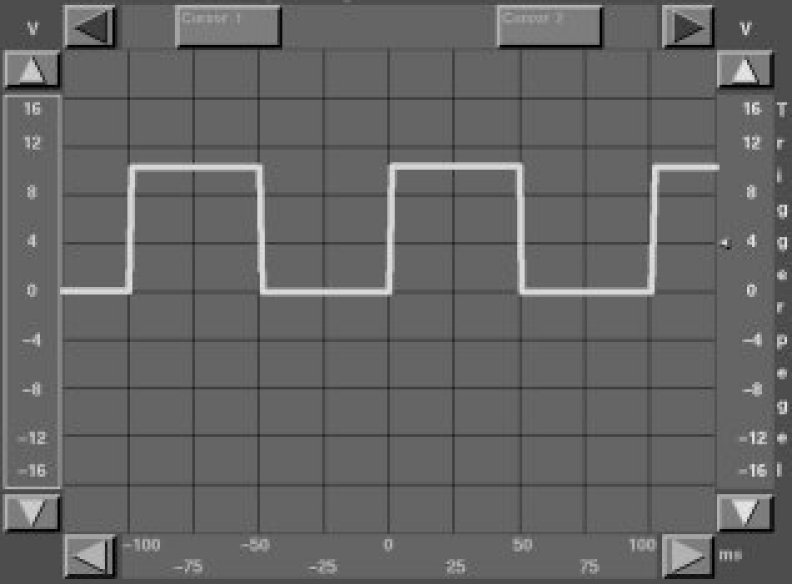

Fig. 1: Signal OK.

The speed signal from the DSC control module must be a rectangular signal with amplitude battery voltage.

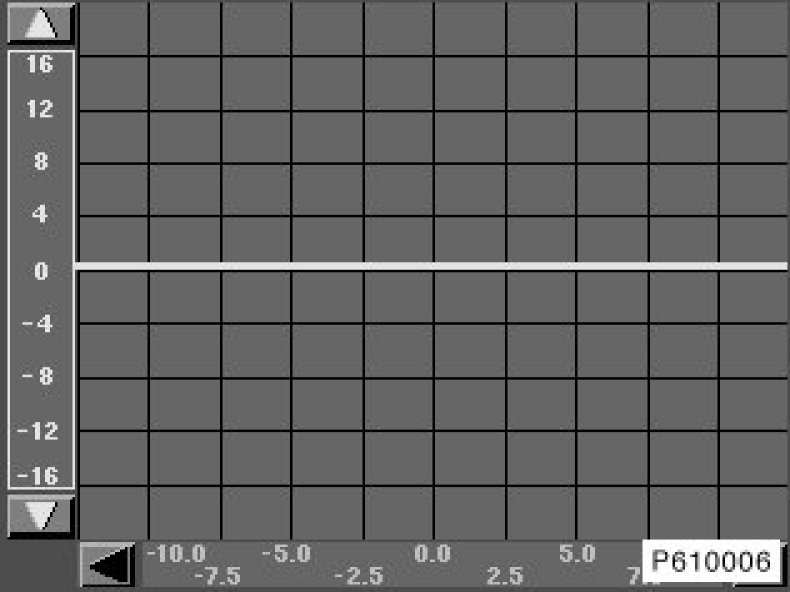

Fig. 2: Signal not OK

The above illustration indicates a short circuit to ground.

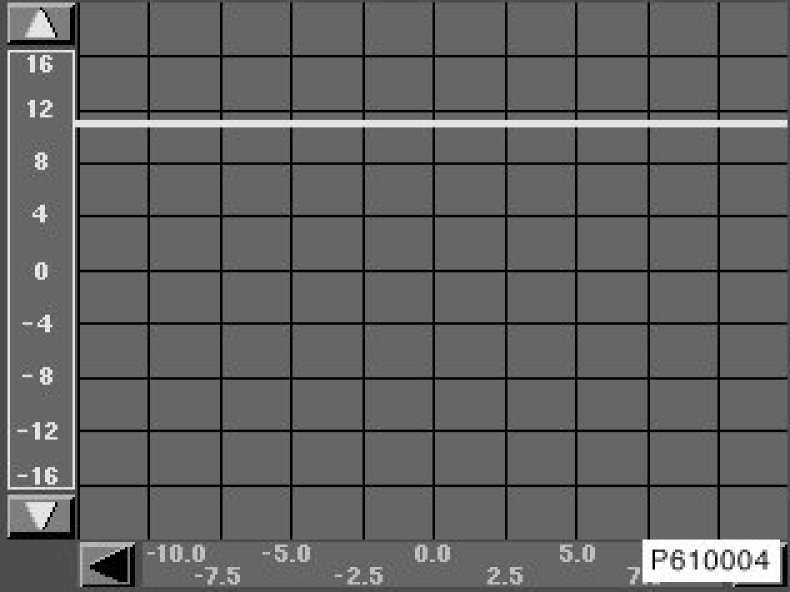

Fig. 3: Signal not OK

The above illustration indicates a break in wiring and/or a problem with the DSC.
