Removing and Installing/Replacing Multiple-Band Antenna

65 20 320 - Removing and installing/replacing multiple-band antenna





Necessary preliminary tasks:
- Remove panel for rear lid .

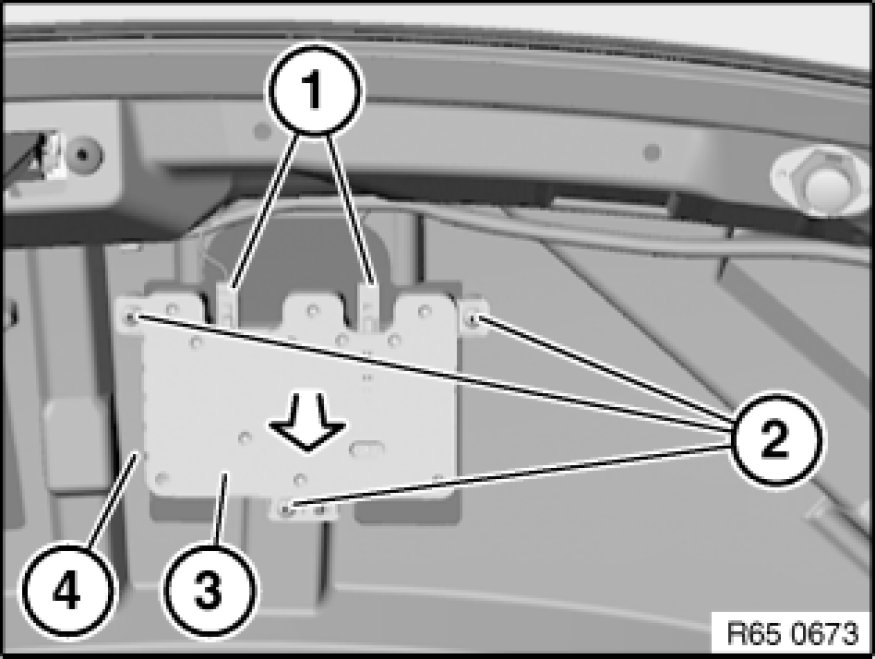

Unlock plug connections (1) and disconnect.
Release screws (2).
Remove multiple-band antenna (3) in direction of arrow from rear lid (4).
