Compressor to Condenser

64 53 642 - Replacing line from compressor to condenser (S85)





Warning!
Risk of injury!
Refrigerant circuit is under high pressure!
Follow safety instructions for handling R 134a refrigerant.
Avoid contact with refrigerant and refrigerant oil.
Follow safety instructions for handling refrigerant oil [1][2]Safety Instructions for Handling Refrigerant Oil.





Important!
Risk of damage!
Restart engine only when A/C system has been correctly filled.
Follow instructions Removal and Replacement for opening and replacing parts in refrigerant circuit.
If A/C system is opened for more than 24 hours:
Replace desiccant insert for A/C system





Necessary preliminary tasks:
- Drawing off, evacuating and filling the A/C system Drawing off, Evacuating and Filling A/C System (R 134a) are not included in the time value given for this work operation
- Remove right intake filter housing Removing and Installing Right Intake Filter Housing (S85)





Important!
Do not place front panel center section (2) on jump start terminals.
Do not kink Bowden cables of engine hood/bonnet lock.

Release screws (1).

Remove front panel center section in direction of arrow and place to one side.

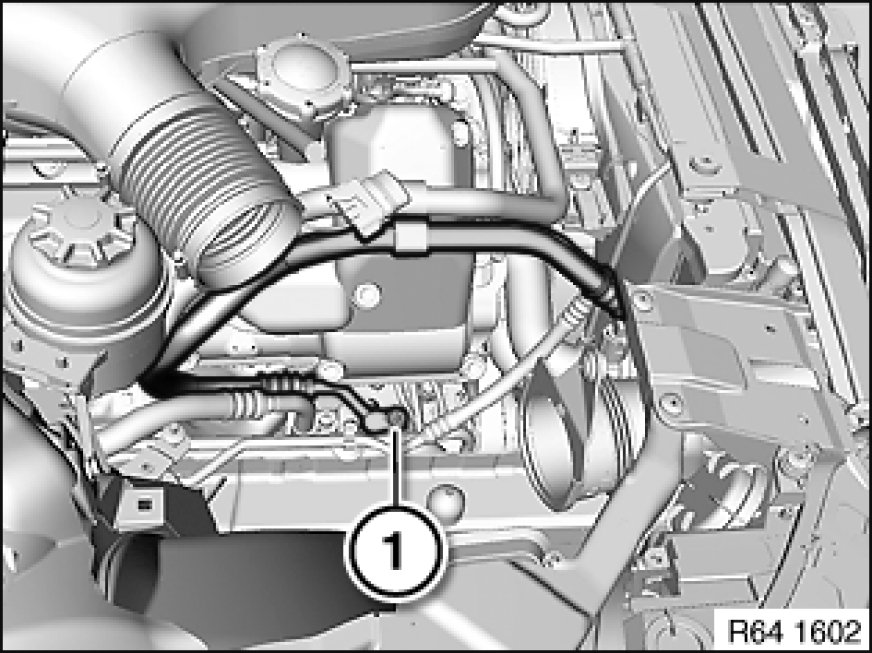

Release screw (1).

Installation Note:
Replace sealing rings and moisten with refrigerant oil.
Tightening torque 64 52 1AZ Specifications.

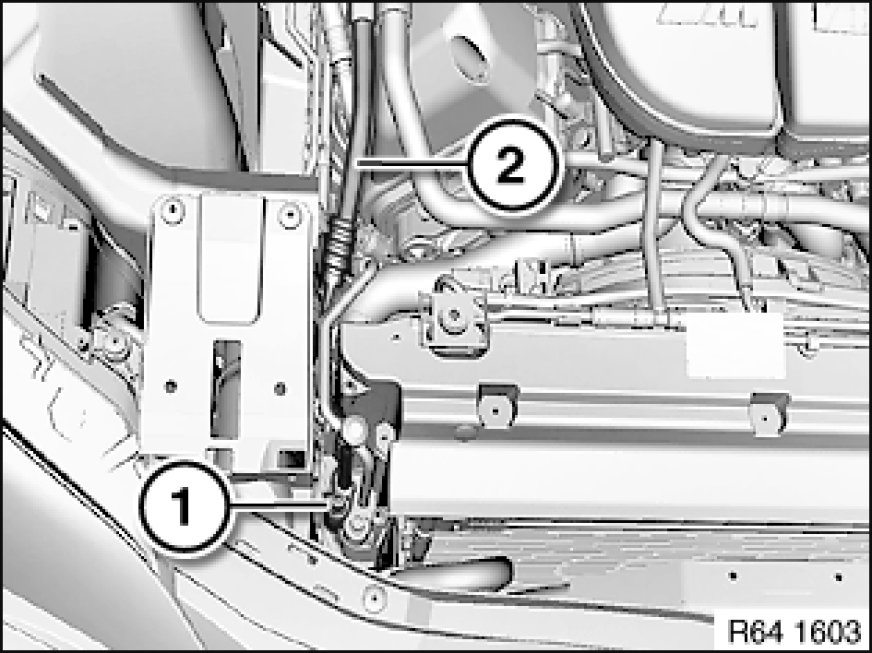

Undo screw (1) and feed out refrigerant line (2).

Installation Note:
Replace sealing rings and moisten with refrigerant oil.
Tightening torque 64 53 6AZ [1][2]Expansion Valve.





After installation:
- Evacuate and fill A/C system Drawing off, Evacuating and Filling A/C System (R 134a)
