Replacing Padding for Front Seat Thigh Support (M5)

52 17 ... - Replacing padding for front seat thigh support (M5)





Note:
Plug connections and fan only with seat heating and/or air conditioning optional extra(s).





If necessary, unlock plug connection (1) and disconnect.
Release screws (2).

Installation:
Insert screws (2) with Loctite.





Unhook seat cover (1) from marked area.
If necessary, feed plug out of carrier (2) for thigh support.

Installation:
Ensure correct cable routing.

Remove carrier (2) for thigh support.

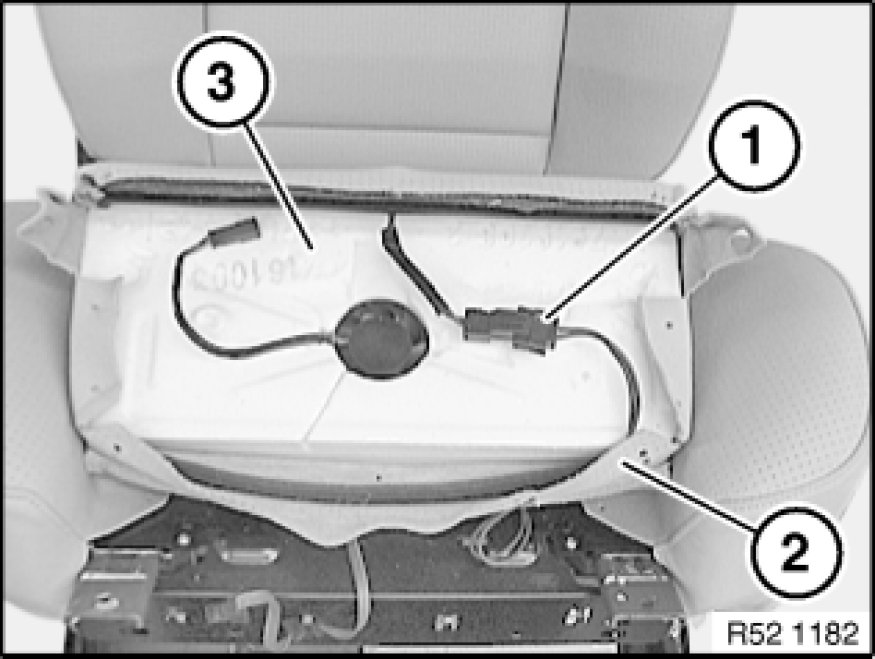

If necessary, unlock plug connection (1) and disconnect.
Remove padding (3) from cover (2).





For A/C optional extra only:
Remove dividing net (1).
Remove fan (2) towards top.
