Removing and Installing/Replacing Steering Wheel

32 33 001 - Removing and installing/replacing steering wheel (BMW ALPINA B7)





Note:
Wheel/chassis alignment is not necessary after the steering wheel has been removed and installed or replaced.





Necessary preliminary tasks:
- Remove airbag unit Removing and Installing/Replacing Airbag Unit (BMW ALPINA B7)
- Replacement only: Remove retaining plate for multifunction steering wheel switch





Move wheels/steering wheel into straight-ahead position.
Disconnect plug connection(s) and remove connecting lead(s) from steering wheel.

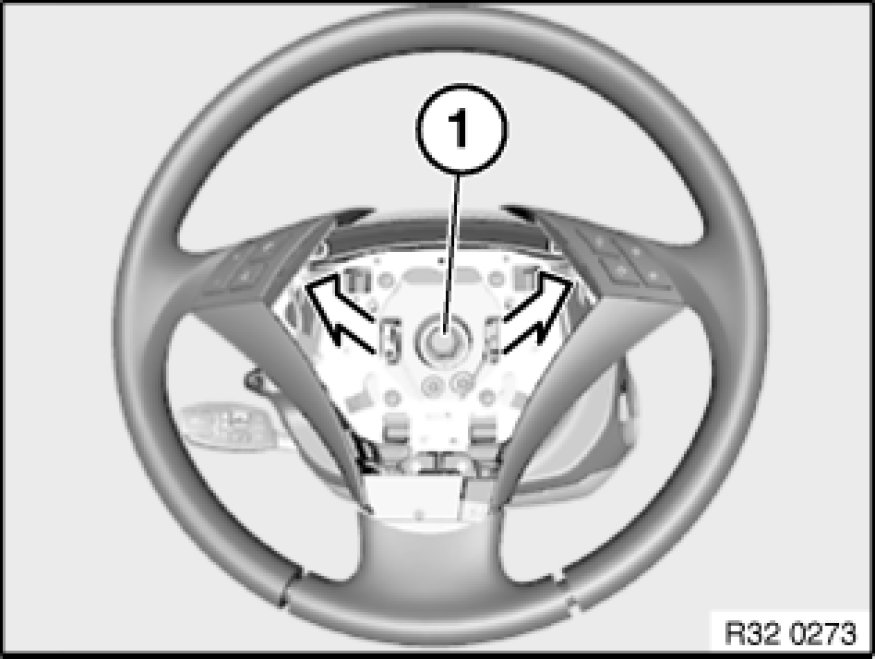

Release screw (1) and remove steering wheel.
Secure volute spring cassette with adhesive tape against twisting.

Installation:
Make sure connecting lead(s) is/are correctly laid.
Tightening torque 32 33 1AZ [1][2]Specifications.





Important!
Risk of damage!
Locking pin (1) must engage in recess of driver (2).

Installation:
Align steering wheel using grooved toothing to steering column and attach.
