51 14 110 Removing and installing/replacing rear model designation (BMW ALPINA B7)

51 14 110 - Removing and installing/replacing rear model designation (BMW ALPINA B7)





Important!
The "Instructions for number/letter combination cementing 51 14 ... Instructions For Attaching Number/Letter Designation Combination" serve as the basis for these repair instructions and must be followed without fail.

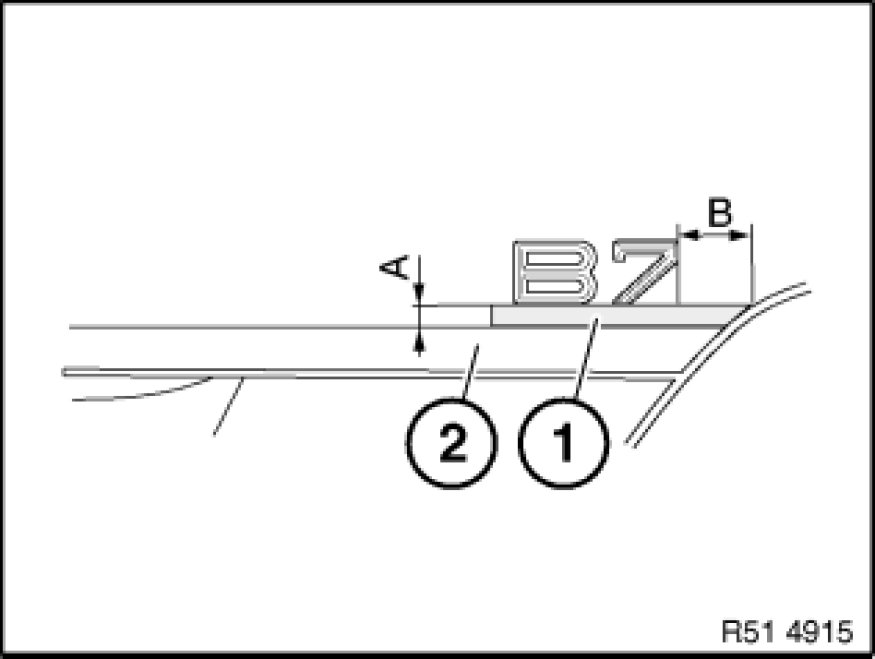

Stick on top edge of adhesive tape (1) parallel to trim (2) on rear lid at distance (A).
Mark measurement (B) on top edge of adhesive tape (1).
Remove liner (protective strip for adhesive surface).
Position lettering against adhesive tape (1) and press down firmly.
Dimensions:
A = - 10 mm
B = - 30 mm

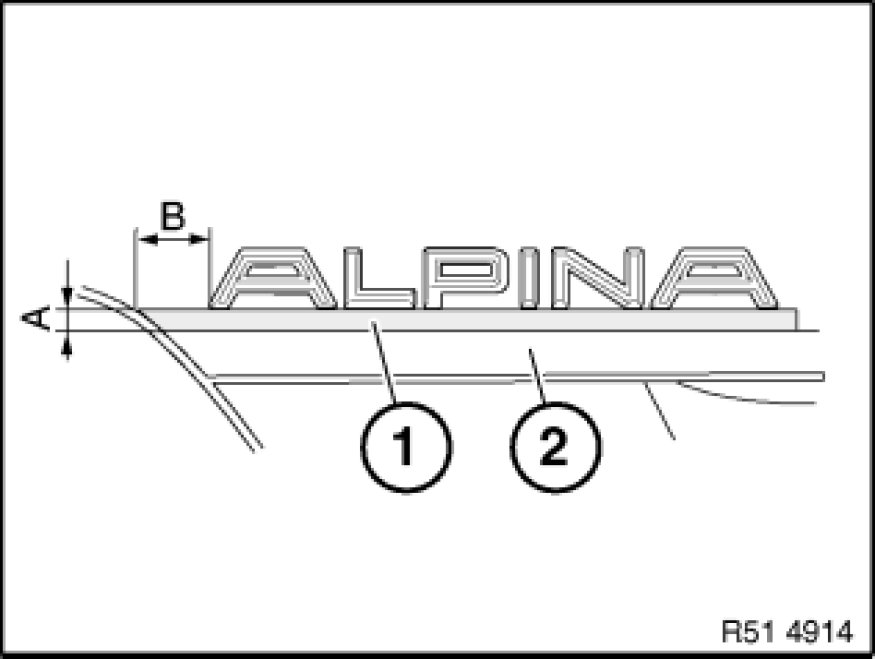

Stick on top edge of adhesive tape (1) parallel to trim (2) on rear lid at distance (A).
Mark measurement (B) on top edge of adhesive tape (1).
Remove liner (protective strip for adhesive surface).
Position lettering against adhesive tape (1) and press down firmly.
Dimensions:
A = - 10 mm
B = - 50 mm
