Removing and Installing/Replacing Left or Right High-Pressure Nozzle of Headlight Cleaning System

61 67 083 - Removing and installing/replacing left or right high-pressure nozzle of headlight cleaning system





Special tools required:
- 13 3 010 13 3 010 Hose Clip





Remove front bumper trim.





To prevent excess escape of washer fluid, seal off end of high-pressure line with special tool 13 3 010 13 3 010 Hose Clip.

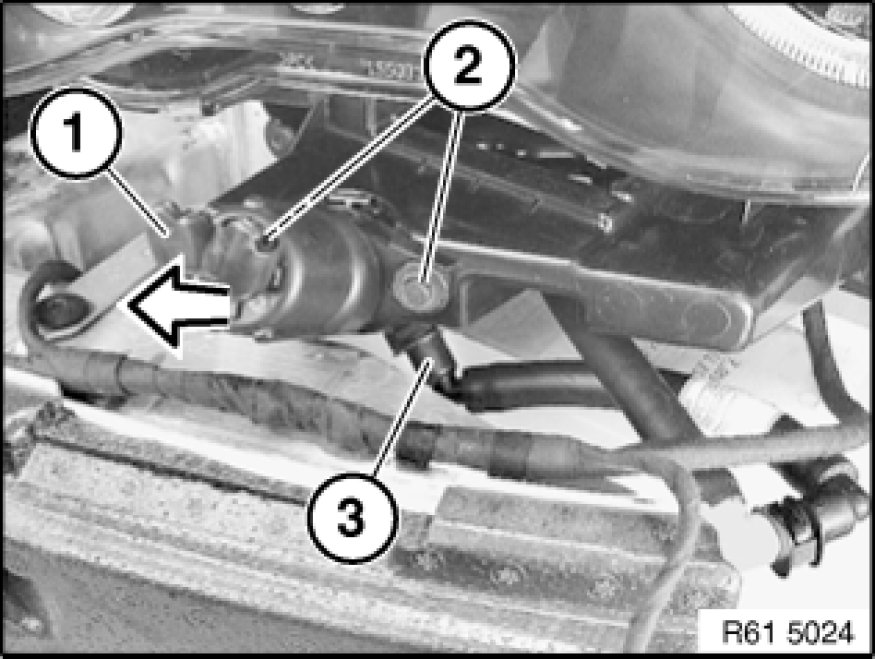

Unlock H.P. line (3) and detach from H.P. nozzle (1).

Release screws (2).

Remove H.P. nozzle (1).





Installation:

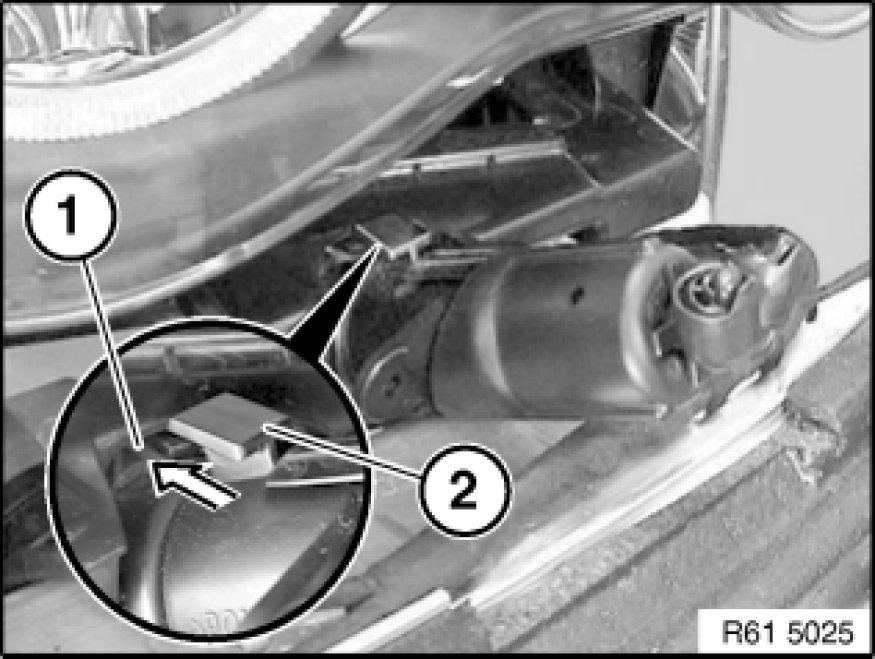

Slide guide (2) into opening (1).

New spray nozzles are already preset.

Carry out function check.
