Removing and Installing/Replacing Cover for Headlight Washer System on Left

51 11 ... - Removing and installing/replacing cover for headlight washer system on left





Necessary preliminary tasks:
- Remove body moulding for bumper

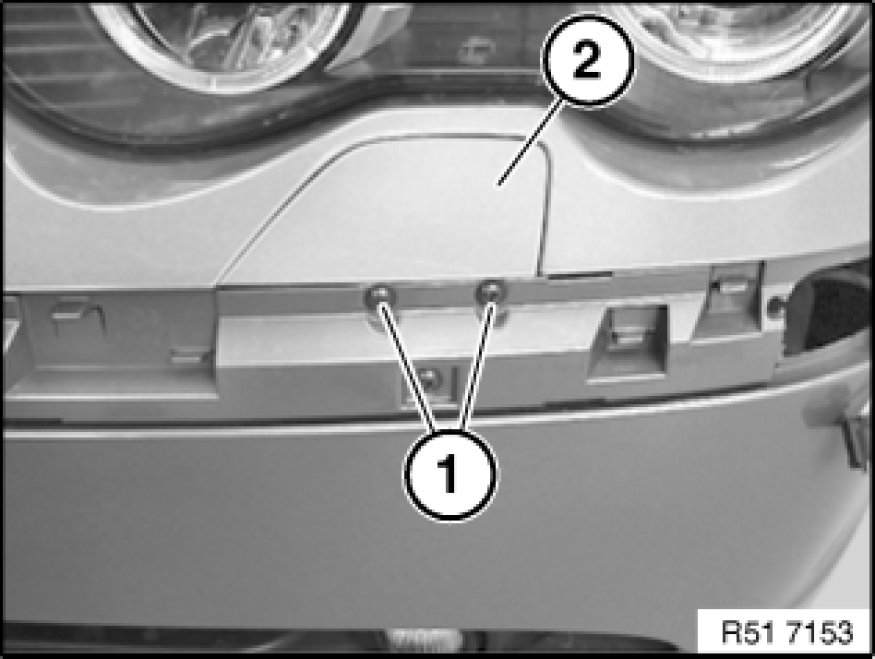

Build date up to 03/05:
Release screws (1).
Remove cover (2) towards top.

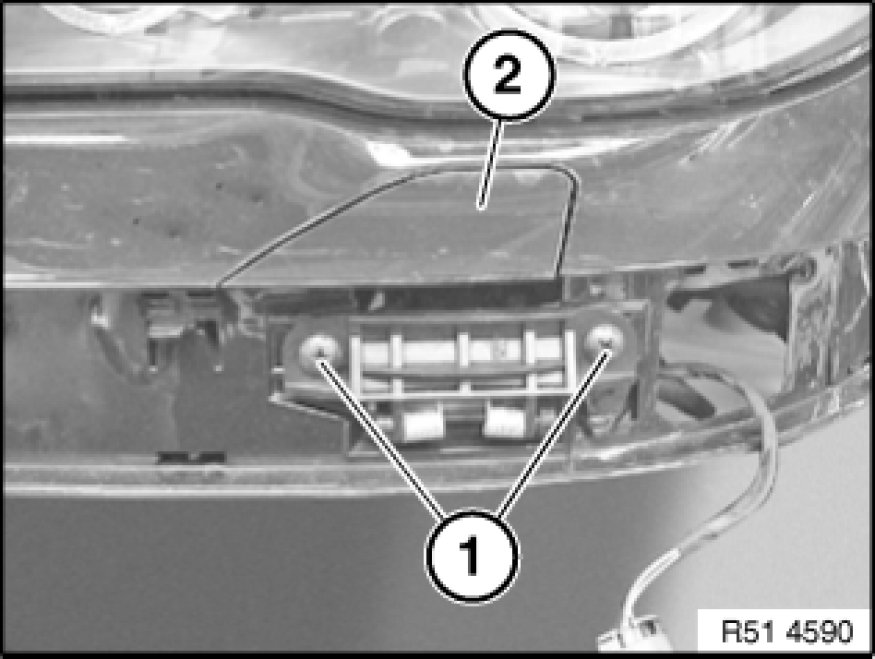

Build date from 03/05:
Release screws (1).
Remove cover (2) towards front.

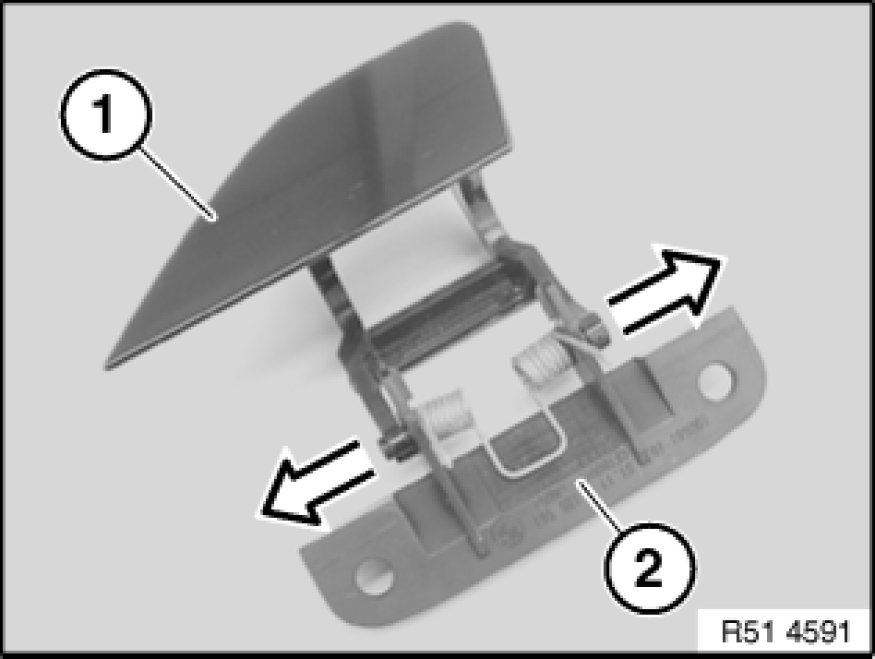

Replacement:
Detach flap (1) sideways from bearing support (2).
