Headlamp Washer Pump: Service and Repair

61 67 010 - Removing and installing/replacing washer pump of headlight cleaning system





Note:
Drain fluid reservoir for windshield washer system

Remove front underbody protection.
Detach front left wheel arch trim in front area and fold back.
Remove bottom left cover.

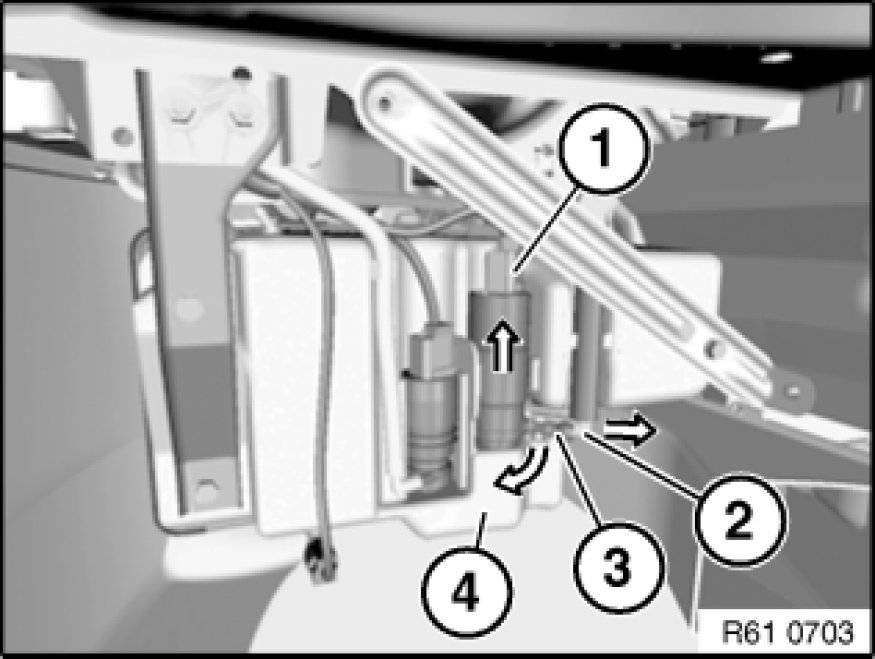

Disconnect plug connection (1).
Unlock hose (2) and detach from washer pump of headlight cleaning system (3).
Turn washer pump of headlight cleaning system (3) in direction of arrow and pull up out of fluid reservoir for windshield washer system (4).





Installation:
Replace strainer for washer pump of headlight cleaning system.
If necessary, coat sealing ring of washer pump for headlight cleaning system with antiseize agent.
Ensure hose is laid without kinks.
