Home >> BMW >> 2007 >> 760Li (E66) V12-6.0L (N73TU) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Shifter A/T >> Service and Repair >> 61 31 267 - Removing and installing/replacing Steptronic switch

61 31 267 - Removing and installing/replacing Steptronic switch




61 31 267 - Removing and installing/replacing Steptronic switch





Special tools required:
- 00 9 341

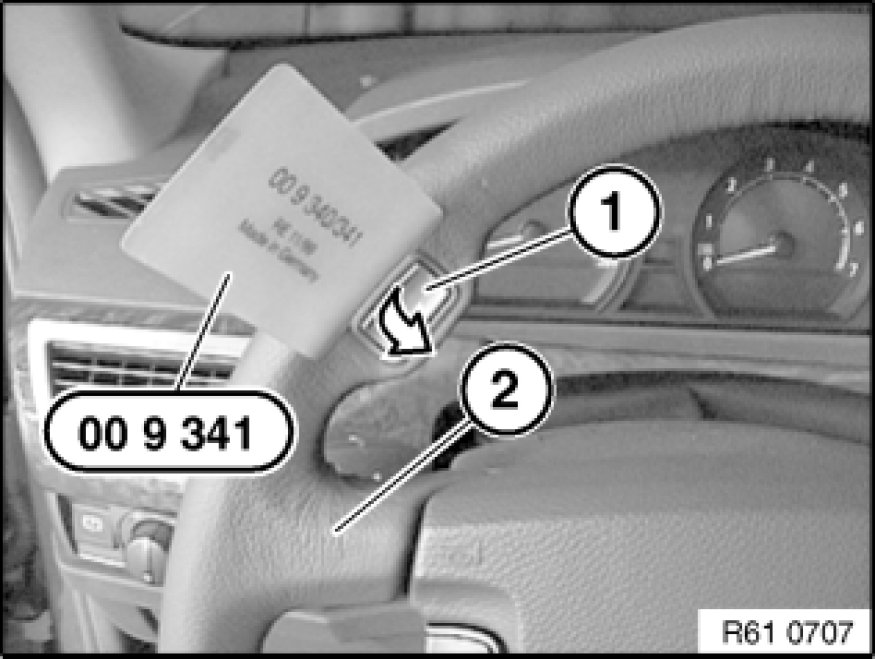

Lever switch for Steptronic (1) with special tool 00 9 341 in direction of arrow out of steering wheel (2).

Disconnect plug connection behind and remove Steptronic switch (1).
