Replacing Universal Joint for Lower Section of Steering Spindle

32 31 211 - Replacing universal joint for lower section of steering spindle





Warning!
Scalding hazard!
Only perform this work after engine has cooled down.





Important!
Observe safety instructions 00 .. ... Lifting Vehicle With A Lifting Platform on raising the vehicle.

After installation:
- Carry out steering angle sensor adjustment Adjustments





Necessary preliminary tasks:
- Move steering wheel to straight-ahead position and remove ignition key

- Remove steering gear cover at side

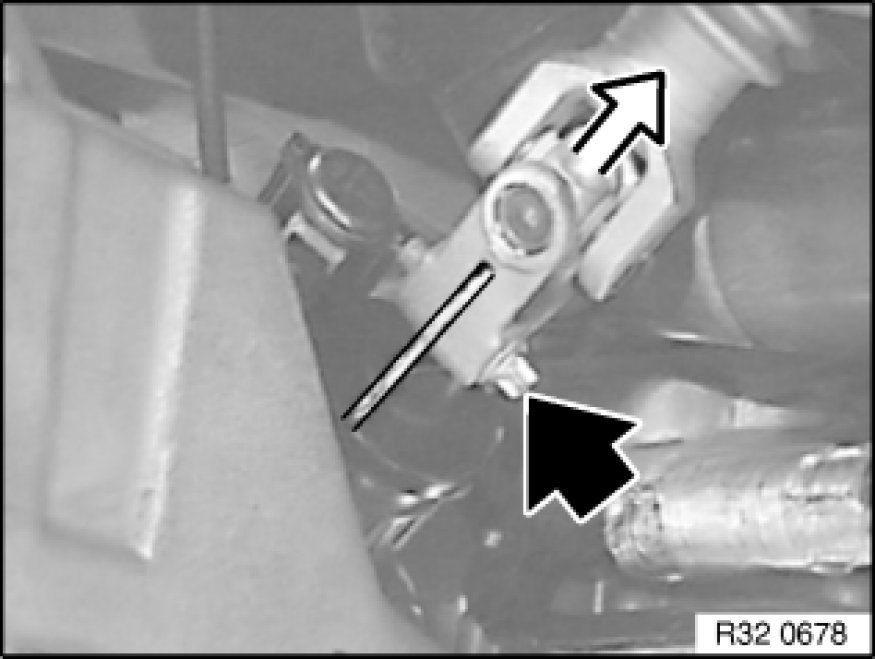

Release clamping screw.
Detach universal joint from power steering gear.

Installation Note:
Replace clamping screw.
Tightening torque 32 31 14AZ [1][2]Specifications.





Installation Note:
If necessary, move power steering gear to straight-ahead position - markings on cap (1) and housing (2) must match up.





Release clamping screw.

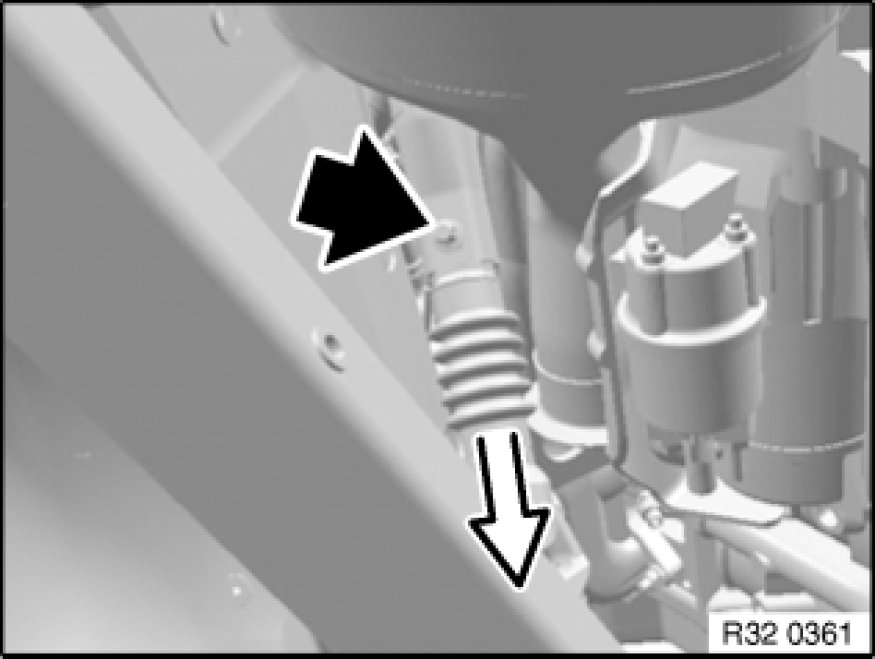

Grip steering spindle lower section and pull out universal joint with corrugated tube downwards.

Installation Note:
Universal joint can only be attached in one position to lower section of steering spindle.
Replace clamping screw.
Tightening torque 32 31 13AZ [1][2]Specifications.
