Removing and Installing/Replacing an Ultrasonic Transducer at Front (Inside) (Park Distance Control)

66 20 520 - Removing and installing/replacing an ultrasonic transducer at front (Park Distance Control)





Necessary preliminary tasks:
- Remove protective strip for bumper .

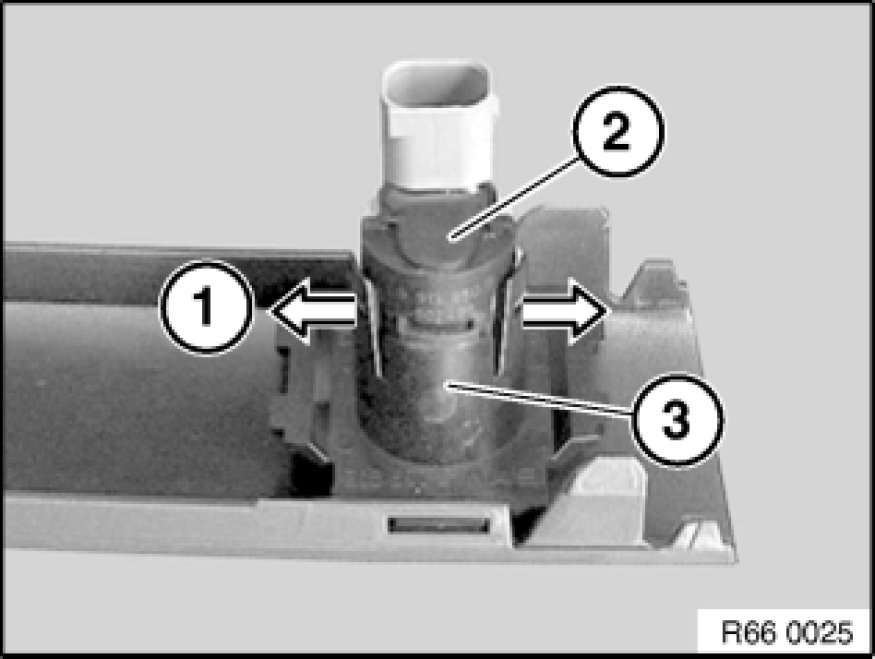

Unlock catches (1) and pull ultrasonic transducer (2) out of fixture (3).





Installation:

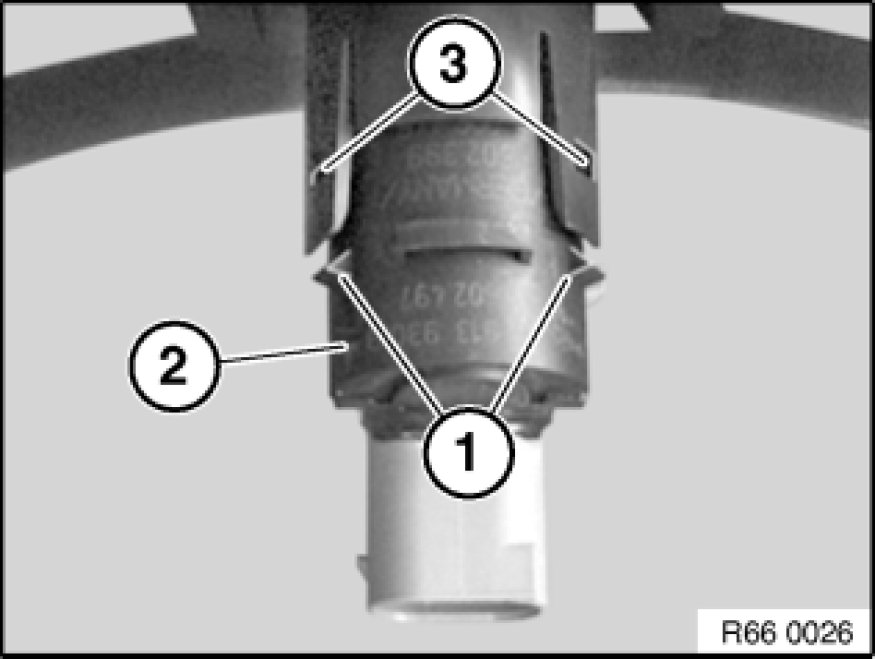

Retaining hooks (1) of ultrasonic transducer (2) must engage exactly in mountings (3).
