Removing and Installing/Replacing Front Left or Right Seat Belt

72 11 033 - Removing and installing/replacing front left or right seat belt





Necessary preliminary tasks:
- Remove panel for door post Removing and Installing/Replacing Trim on Left or Right Door Pillar (Top)
- Remove outer cover on front seat Removing and Installing/Replacing Outer Cover on Front Left or Right Seat (Normal/Electric)





Warning!
Read and comply with safety regulations [1][2]Safety Regulations For Handling Airbag System Components for handling airbag modules and pyrotechnical belt tensioners.
Improper handling can lead to triggering of the pyrotechnical seat belt pretensioner or side airbag, resulting in injuries.

Switch off ignition!





Release screw (1).

Installation:
Tightening torque: 72 11 04AZ [1][2]Seat Belt Systems.

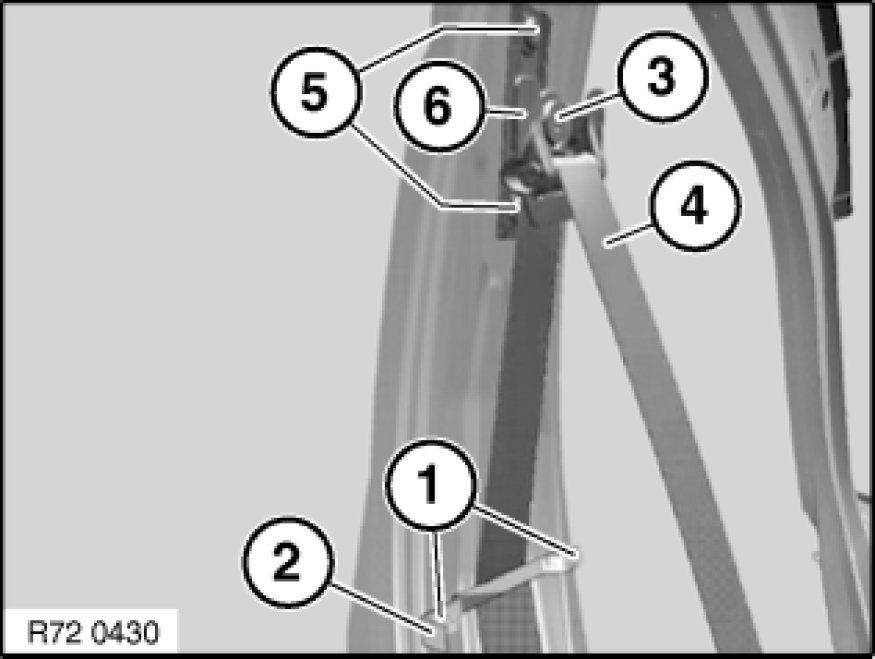

Release screws (1) and remove belt guide (2).
Release screw (3) and remove belt (4).
Tightening torque: 72 11 03AZ [1][2]Seat Belt Systems.
If necessary, release screws (5) and remove connecting plate for belt deflection fitting (6).
Tightening torque: 72 11 02AZ [1][2]Seat Belt Systems.

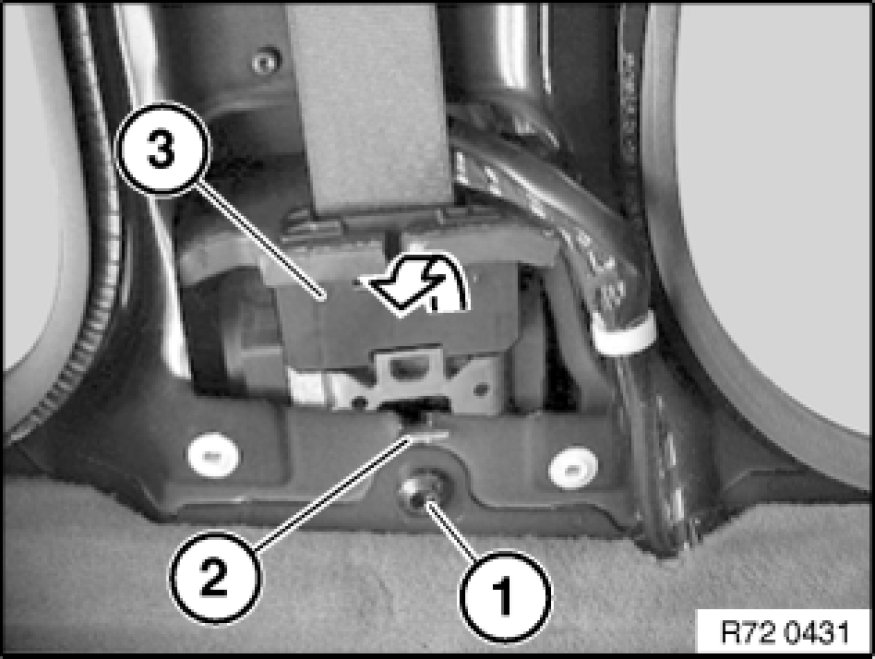

Release screw (1).
Remove inertia reel mechanism (3).
Tightening torque: 72 11 01AZ [1][2]Seat Belt Systems.

Installation:
Coding (2) of inertia reel mechanism must be seated in opening of body.
Retaining screw (1) secures inertia reel mechanism.
