Removing and Installing/Replacing All Seat Belts (Comfort)

72 11 302 - Removing and installing/replacing all seat belts (comfort)





Necessary preliminary tasks:
- Remove trim for parcel shelf 51 46 001 Removing and Installing Panel For Rear Window Shelf (Parcel Shelf)
- Remove rear seat Removing and Installing/Replacing Left or Right Rear Seat





Warning!
Read and comply with safety regulations [1][2]Safety Regulations For Handling Airbag System Components for handling airbag modules and pyrotechnical belt tensioners.
Incorrect handling may trigger the pyrotechnical seatbelt tensioner or side airbag and thereby cause injuries.

Switch off ignition!

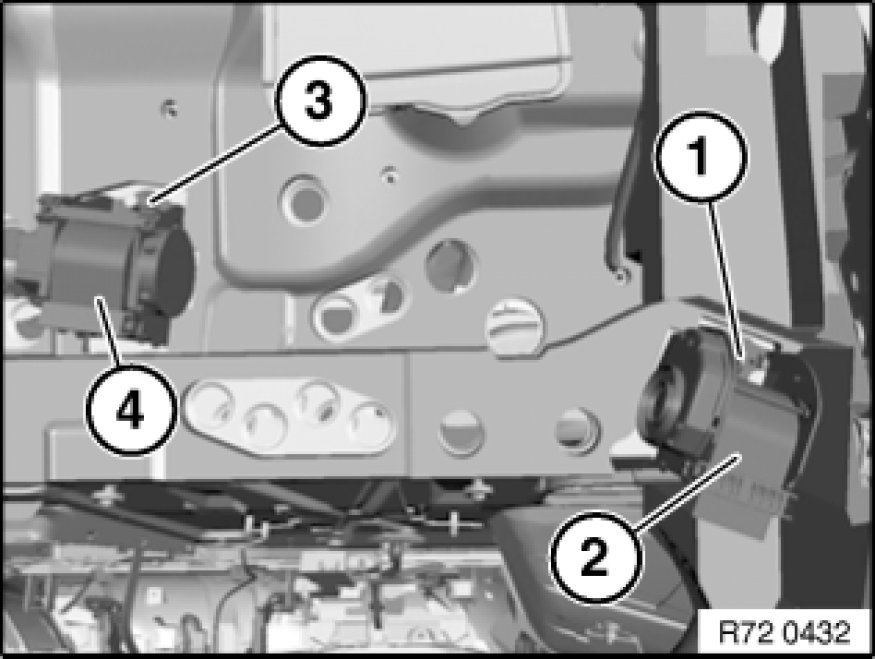

Release screws (1) on left and right.
Remove upper strap (2) on left and right.

Installation:
Guide lug of belt retractor must be seated in opening in body.

Unscrew nut (3).

Remove upper strap (4).

Installation:
Tightening torque 72 11 20AZ [1][2]Seat Belt Systems.

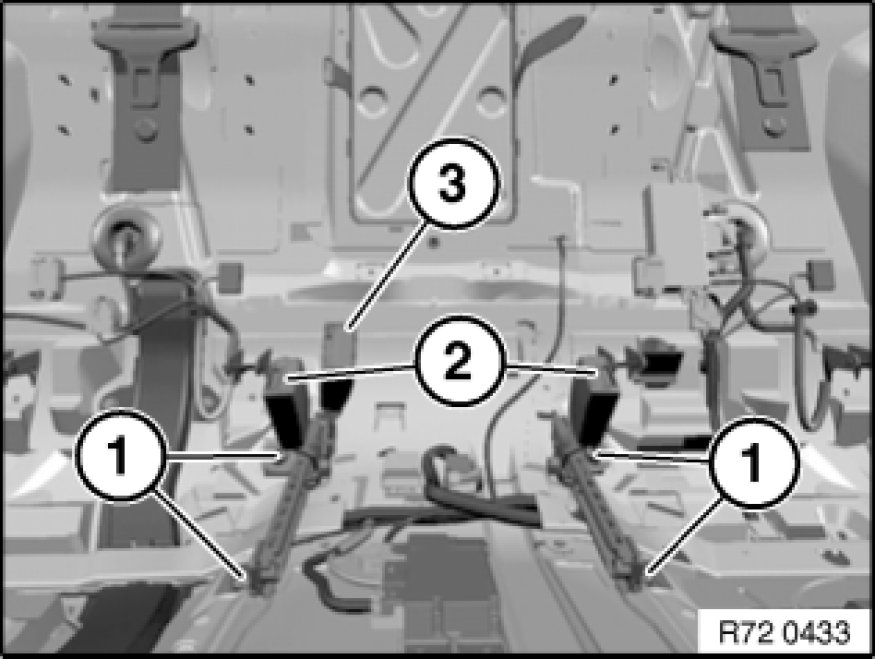

Release screws (1).
Remove lower strap (2) on left and right.
Remove lower strap (3) (except E67).

Installation (except E67):
Holder for lower strap (3) must be fitted below lower strap on right (2).
Tightening torque 72 11 21AZ [1][2]Seat Belt Systems.
