Clockspring Assembly / Spiral Cable: Service and Repair

61 31 011 - Removing and installing/replacing volute spring cassette

Remove and install fixture for steering column stalk Removing and Installing/Replacing Fixture for Steering Column Stalk.

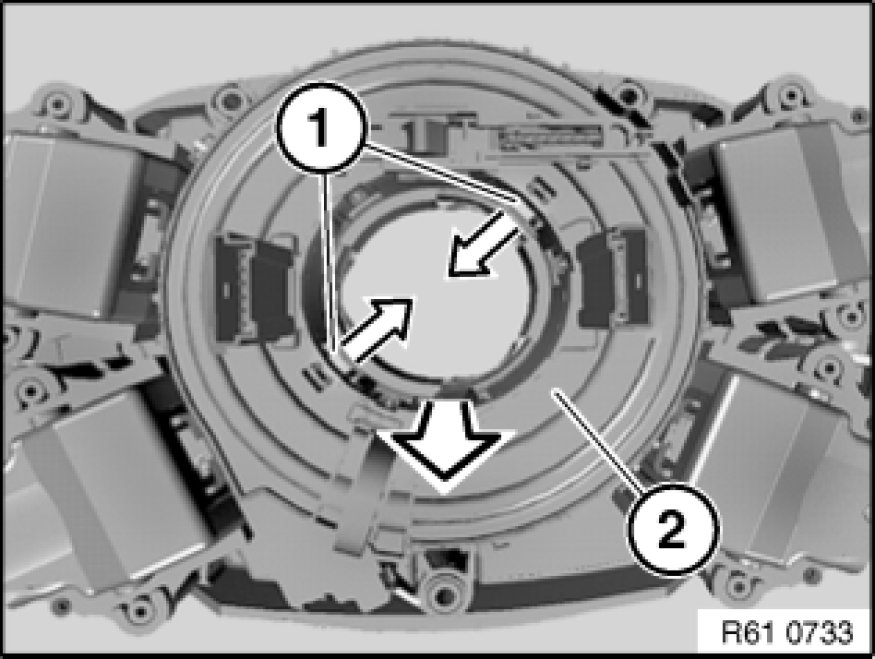

Unlock catches (1) and remove volute spring cassette (2) towards top.





Installation:

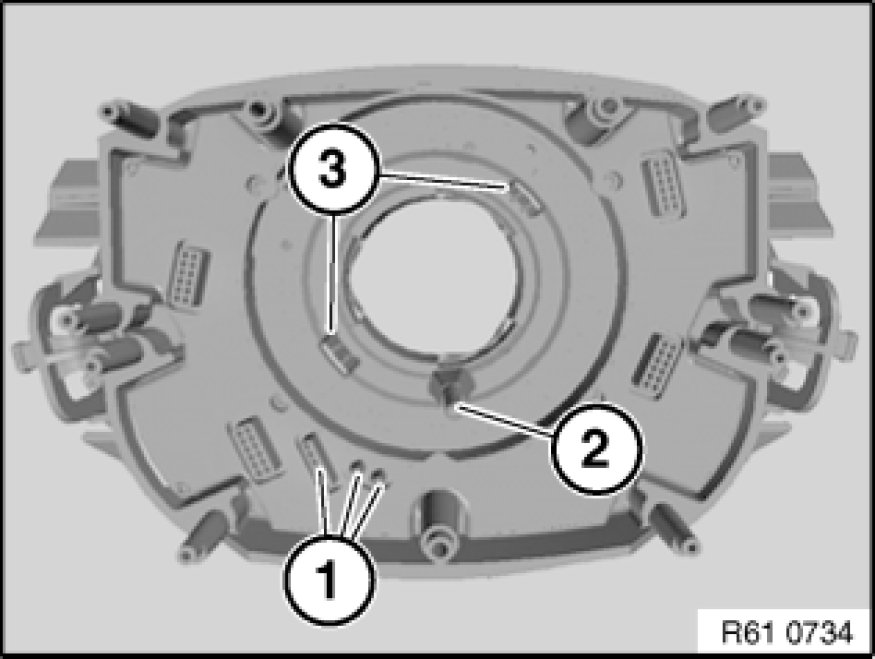

Seat volute spring cassette exactly on plug connections (1), guide (2) and mounts (3).
