Voice Activation Module: Service and Repair

84 41 510 - Removing and installing/replacing control unit for voice input system





Necessary preliminary tasks:
- Disconnect battery negative lead Instructions for Disconnecting and Connecting Battery





Note:
Follow instructions for handling optical fibers 61 00 ... Notes on Handling Optical Fibers.

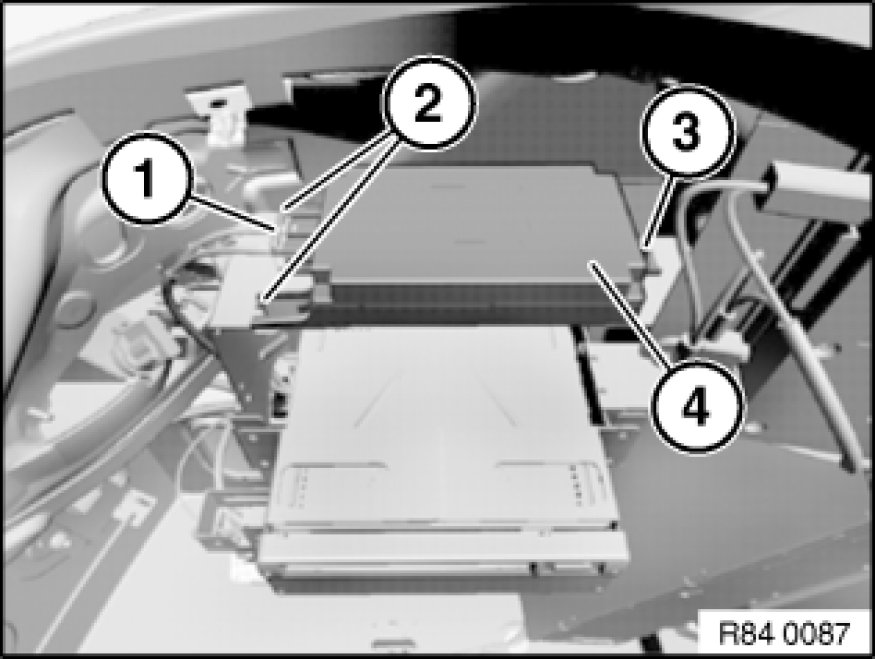

Unlock plug connection (1) and disconnect.
Slacken nuts (2).
Release nut (3).
Feed out control unit for voice input system (4) and remove.
