Evaporative Emission Control Canister: Service and Repair

16 12 010 - Removing and installing / replacing carbon canister





Necessary preliminary tasks:
- Remove expansion tank Service and Repair.

Observe safety instructions on raising the vehicle 00 .. ... Lifting Vehicle With A Lifting Platform.

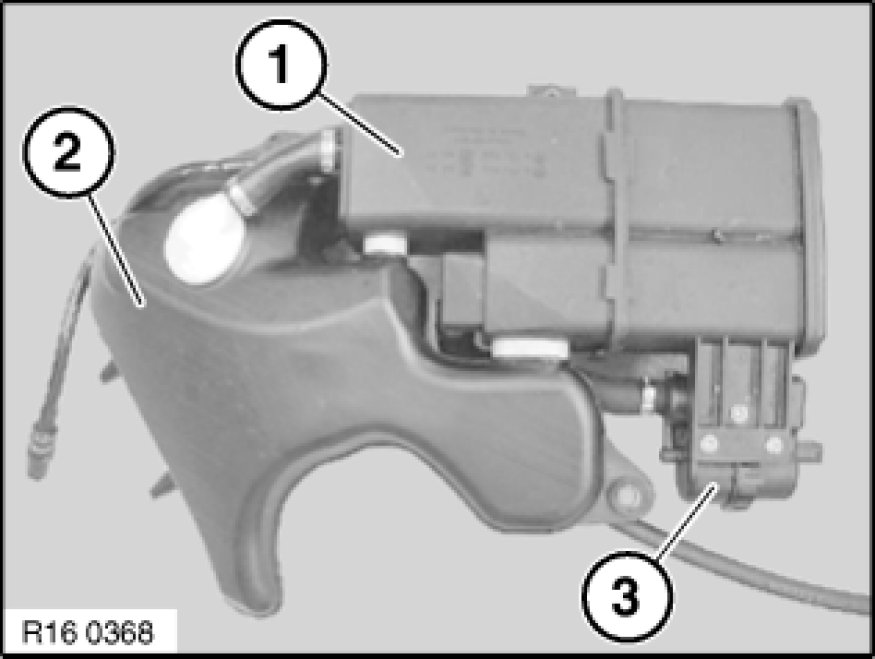

1. Active carbon filter
2. Expansion tank
3. Diagnosis module for tank leakage (DMTL)
