Removing and Installing/Replacing RDC Receiving Aerial (Rear)

36 11 527 - Removing and installing/replacing rear receiving antenna for RDC





Operations for removing and installing receiving antenna at rear left or right are identical.
Remove rear left or right wheel arch trim.

Note:
Holder with receiving antenna is detached by removal of wheel arch trim.

Observe safety instructions on raising the vehicle 00 .. ... Lifting Vehicle With A Lifting Platform.

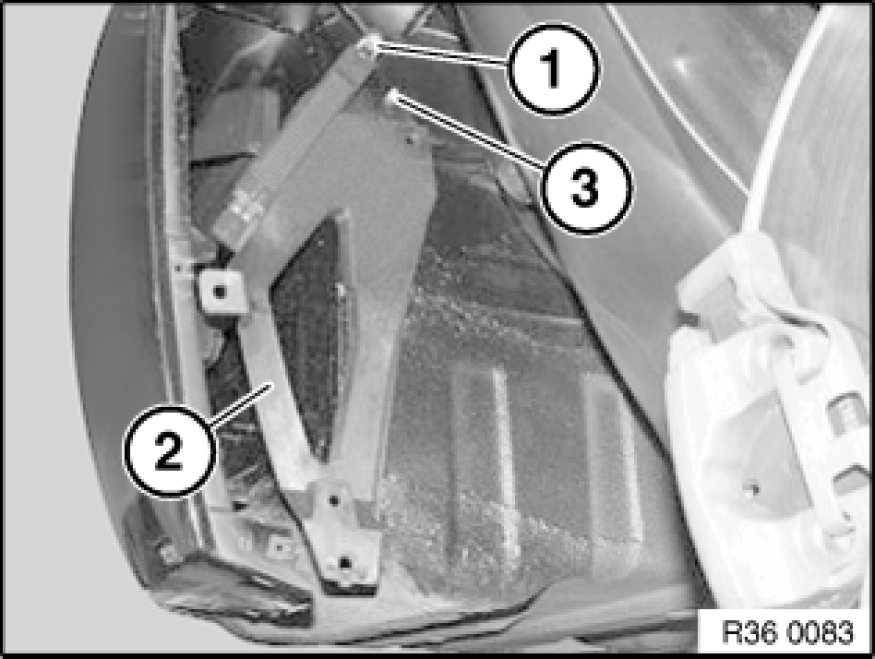

Unlock plug (1) and disconnect.
Detach receiving antenna with fixture (2) from threaded pin (3).

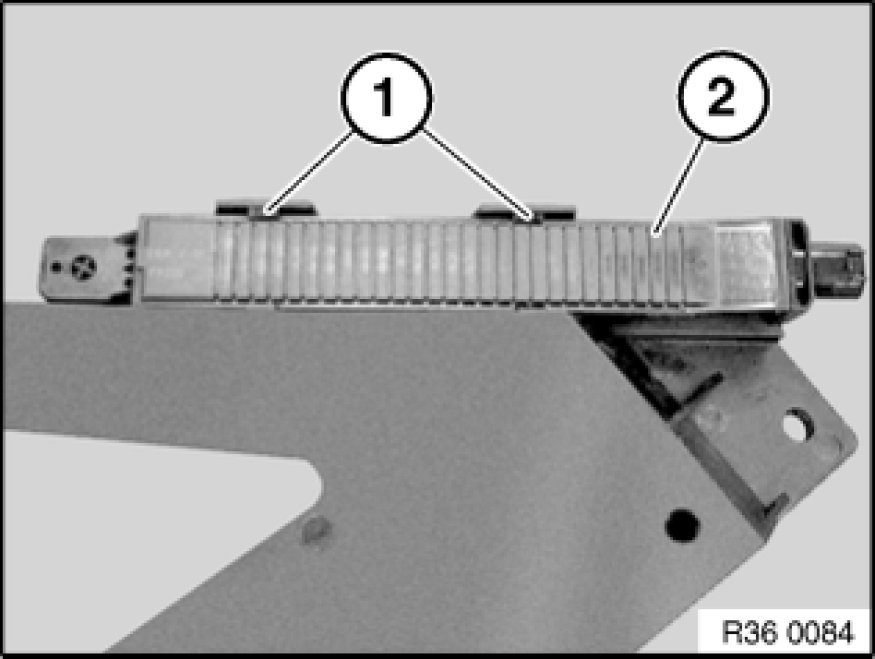

Unlock retaining lugs (1) and unclip receiving antenna (2).
