Parking Light Bulb: Service and Repair

63 99 132 - Replacing bulb for front left sidelight (from 03/05)





Warning!
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights).





Necessary preliminary tasks:
- Remove left headlight Removing and Installing/Replacing Left Headlight (From 03/05)

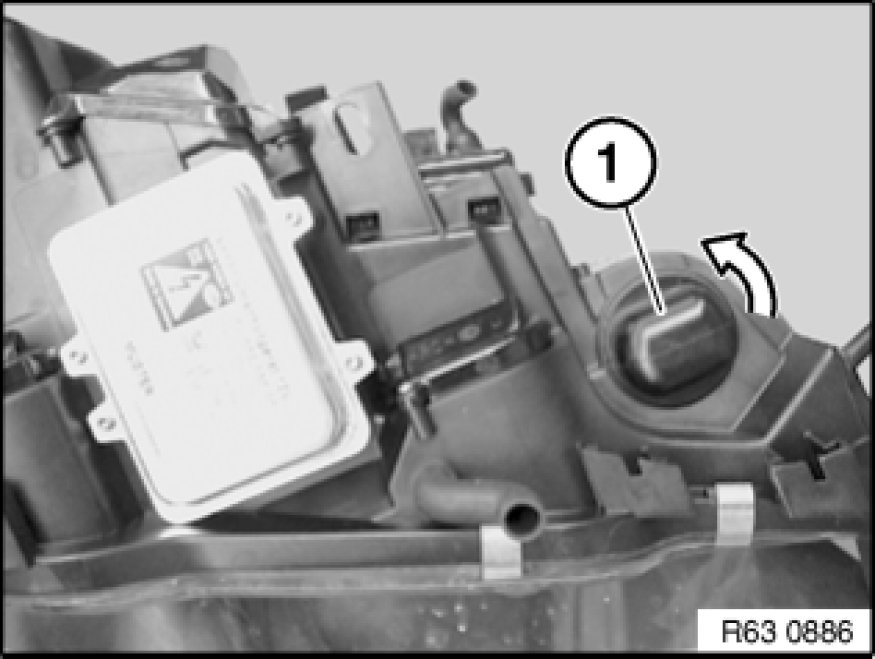

Turn cover (1) approx. 30° in direction of arrow and remove.

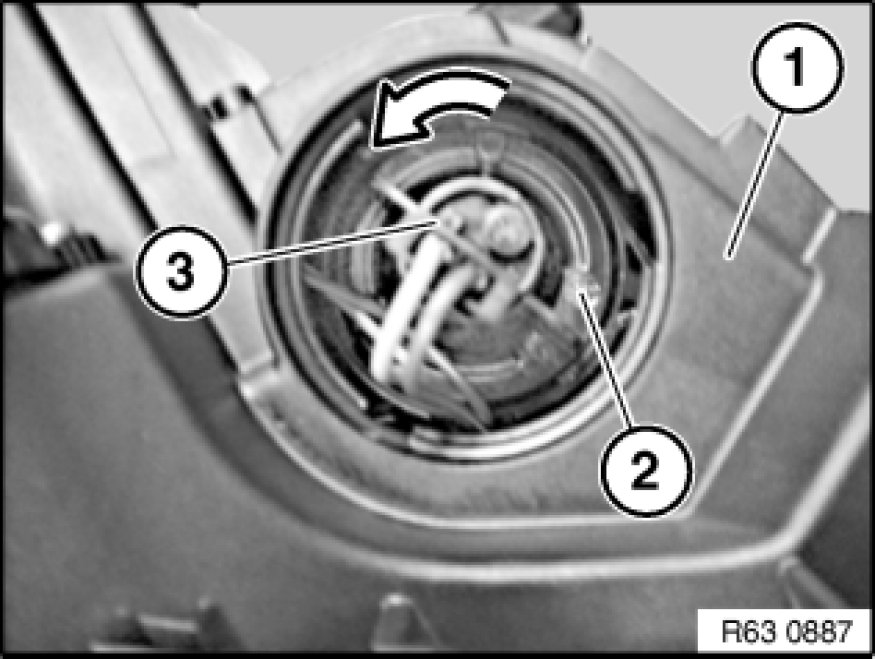

Detach plug (3) from bulb (2).
Turn bulb (2) in direction of arrow and remove from headlight (1).

Installation Note:
Holder with bulb for sidelight (1) must be correctly seated in mounting.
Note bulb type.
