Replacing Halogen Bulb For Left High-Beam Headlight (From 03/05)

63 99 002 - Replacing halogen bulb for left high-beam headlight (from 03/05)





Warning!
Follow instructions for handling light bulbs (exterior lights) Instructions for Handling Light Bulbs (Exterior Lights).

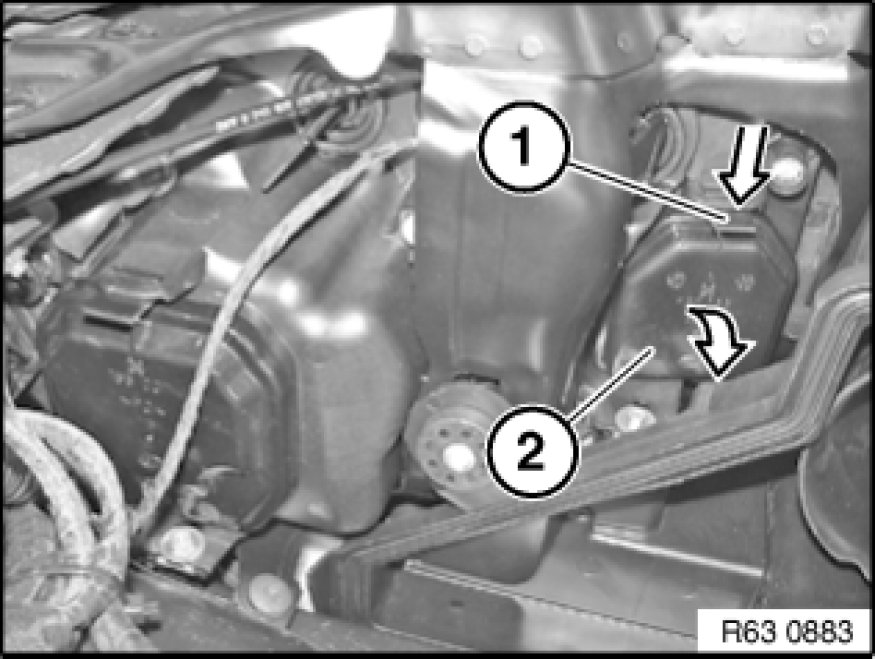

Press lock (1) in direction of arrow and remove cover (2) from headlight.

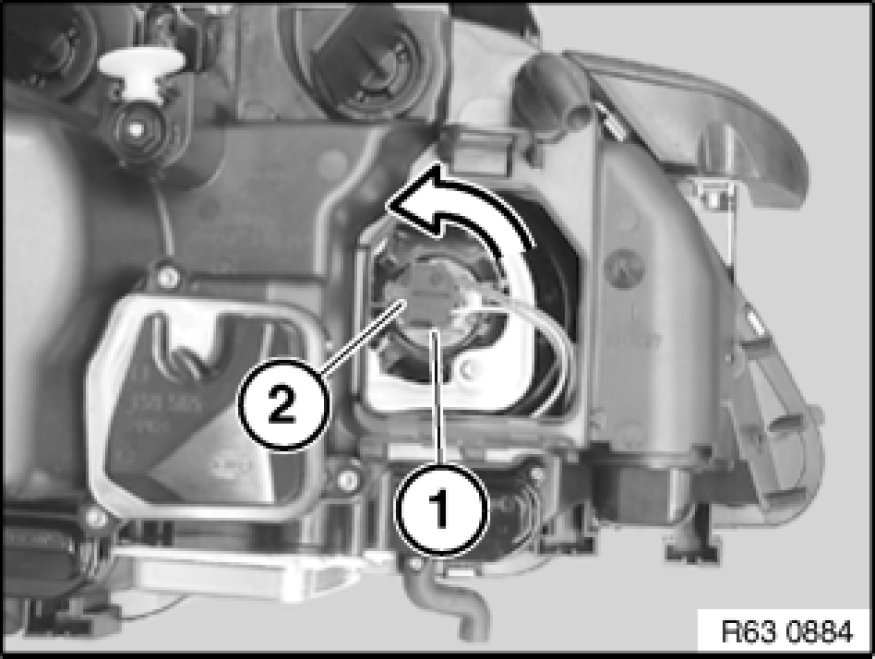

Unlock bulb (1) approx. 30° in direction of arrow and remove.
Detach plug (2) from bulb (1).

Installation Note:
Note bulb type.
