Replacing Rear A/C System Microfilter

64 31 020 - Replacing rear A/C system microfilter





Necessary preliminary tasks:
- E66: Remove panel for trunk separating wall .
- E67: Remove starter battery with carrier plate.

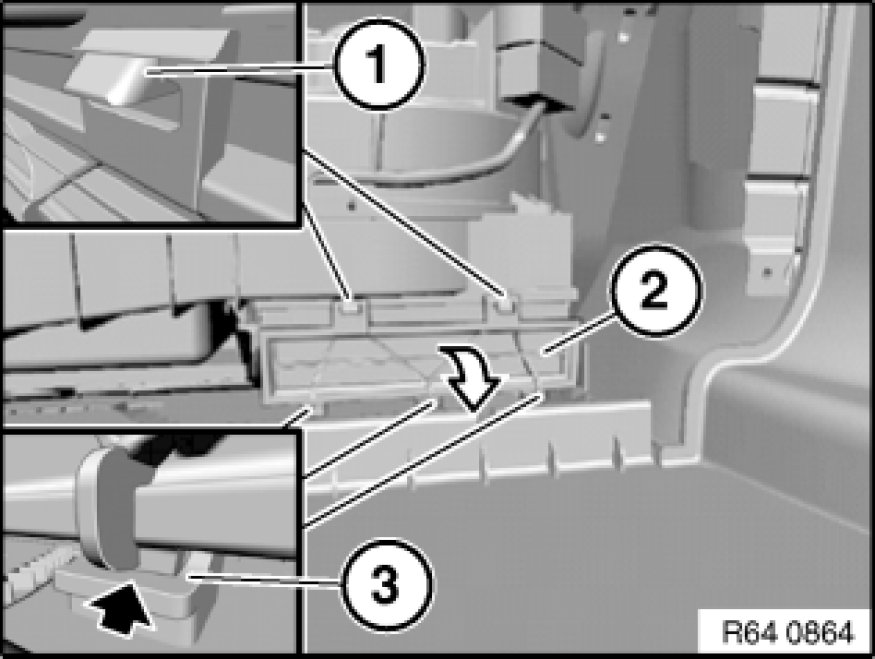

Press lock (1) and remove cover (2) in direction of arrow.

Installation:
Make cover (2) is correctly seated in guides (3).

Carefully pull out microfilter underneath.
