Replacing Servodrive for Warm-Air Flap (on Rear Air Conditioner)

64 11 863 - Replacing servodrive for warm-air flap (on rear air conditioner)





Necessary preliminary tasks:
- Remove panel for luggage compartment partition .





Note:

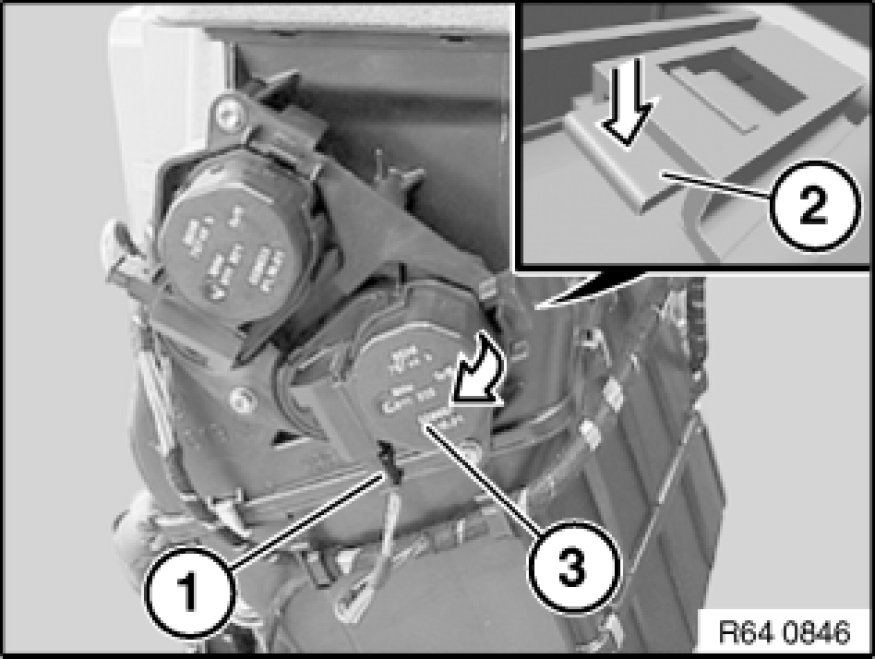

For purposes of clarity, illustration shows rear air conditioner removed.

Disconnect plug connection (1).

Press lock (2) and unclip servodrive for warm-air flap (3) in direction of arrow.

Installation:
Follow repair instruction "Installing servodrive Installing Servodrive".
