Replacing Servodrive for Ventilation/Defrosting Flaps (Automatic A/C High)

64 11 844 - Replacing servodrive for ventilation/defrosting flaps (automatic A/C High)





Necessary preliminary tasks:
- Remove instrument panel trim 51 45 030 Removing and Installing Instrument Panel Trim





Note:

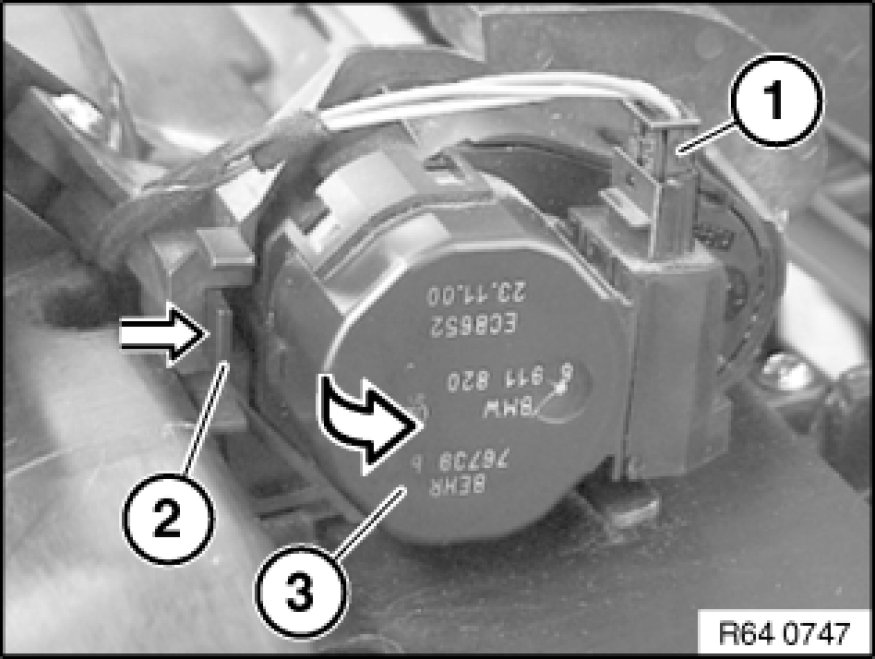

For purposes of clarity, graphic shows servodrive with heater removed.

Disconnect plug connection (1).

Press lock (2) and unclip servodrive (3) in direction of arrow.

Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
