Replacing Servodrive for Right Rear Compartment Flap (Automatic A/C High)

64 11 853 - Replacing servodrive for right rear compartment flap (automatic A/C High)





Necessary preliminary tasks:
- Remove function carrier on trim for instrument panel Installing Servodrive





Unclip cover (1) at both retaining hooks (2) and remove in direction of arrow.

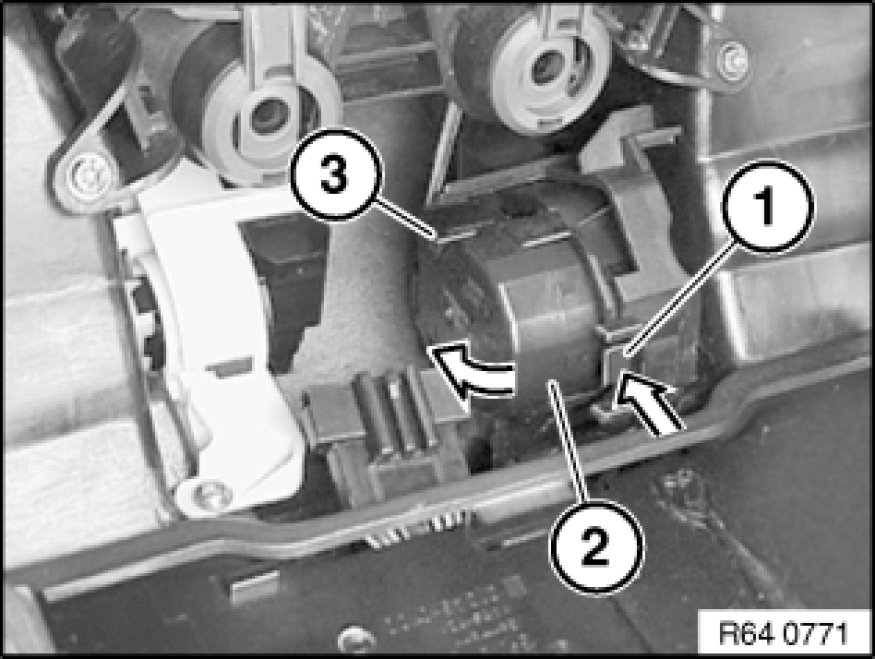

Press lock (1) and unclip servodrive for right rear compartment flap (2) in direction of arrow.
Disconnect plug connection (3) and remove servodrive for right rear compartment flap (2).

Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
