Replacing Servodrive for Right Hot Air Flap (Automatic A/C High)

64 11 813 - Replacing servodrive for right hot air flap (automatic A/C High)





Necessary preliminary tasks:
- Remove glovebox

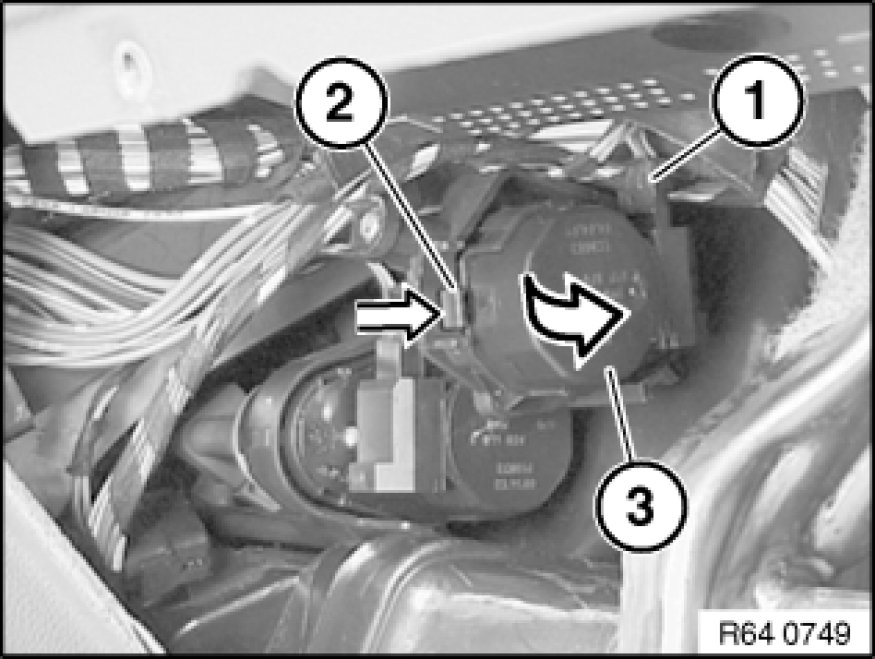

Disconnect plug connection (1).
Press lock (2) and unclip servodrive for right hot air flap (3) in direction of arrow.

Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
