Replacing Servodrive for Right Footwell Flap (Automatic A/C High)

64 11 842 - Replacing servodrive for right footwell flap (automatic A/C High)





Necessary preliminary tasks:
- Remove function carrier 51 16 170 - Removing and installing function carrier on panel for instrument panel on trim for instrument panel





Unclip cover (1) at both retaining hooks (2) and remove in direction of arrow.





Unclip both linkages (2) in direction of arrow.
Release screws (1).
Pull back holder (3) in direction of arrow and invert.





Disconnect plug connection (1).

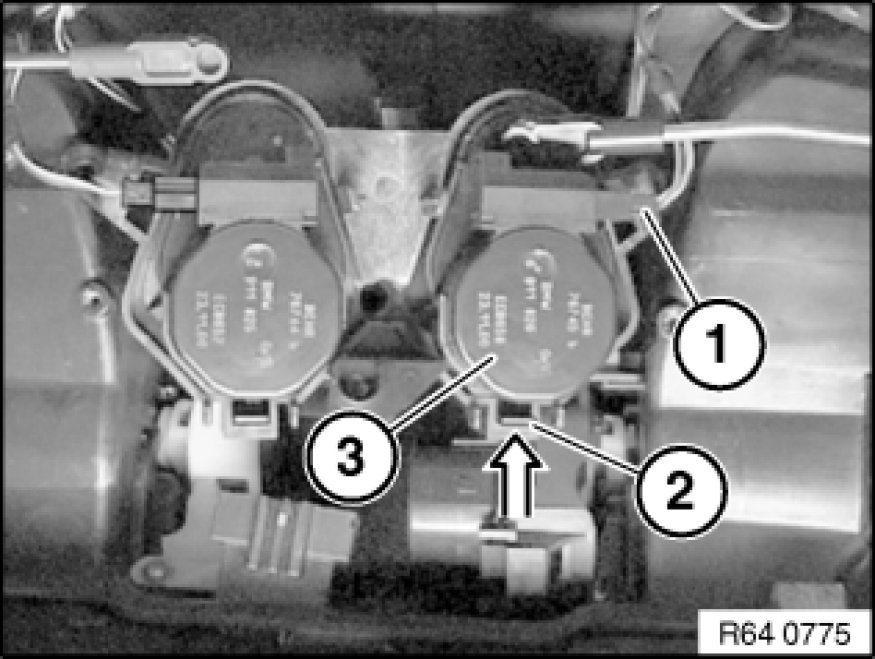

Press lock (2) and unclip servodrive (3) in direction of arrow.

Note:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
