Replacing Servodrive for Right Cold Air Duct (Automatic A/C High)

64 11 818 - Replacing servodrive for right cold air duct (automatic A/C High)





Necessary preliminary tasks:
- Remove servodrive for right hot air flap Replacing Servodrive for Right Hot Air Flap (Automatic A/C High)

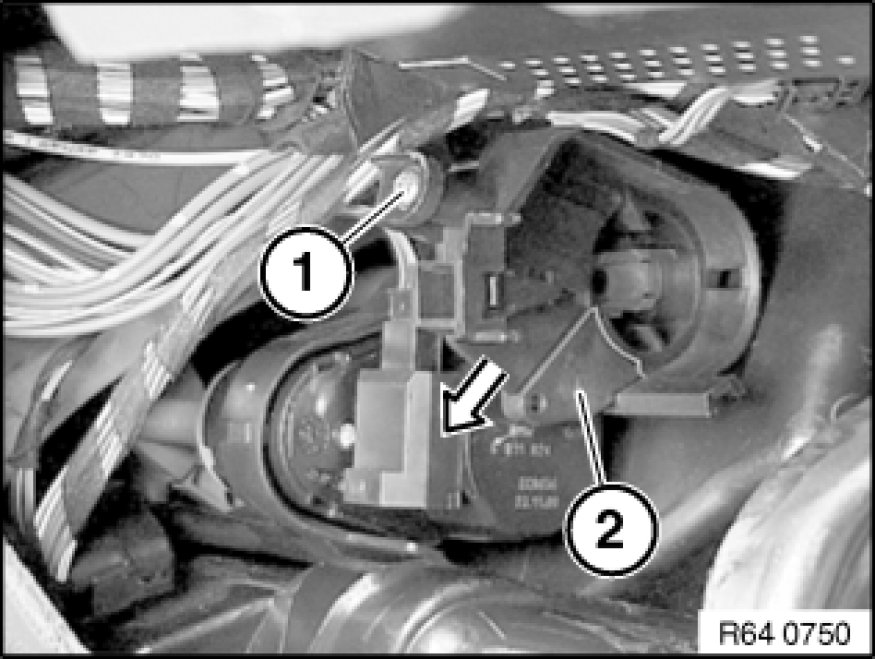

Release screw (1).
Remove holder for servodrive for right hot air flap (2).

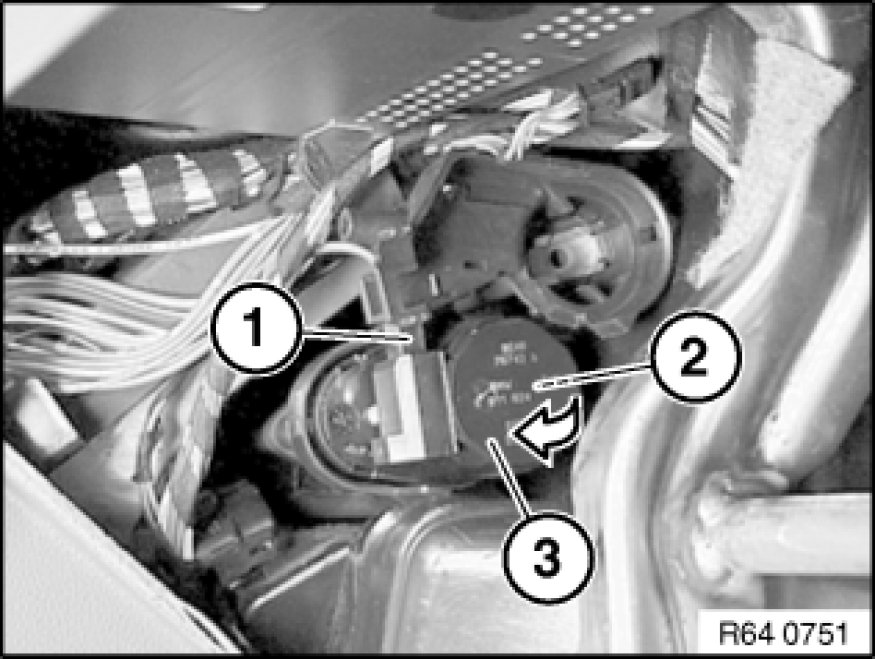

Disconnect plug connection (1).
Press lock (2) and unclip servodrive for right cold air duct (3) in direction of arrow.

Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
