Replacing Servodrive for Recirculated-Air Flap (on Rear Air Conditioner)

64 11 865 - Replacing servodrive for recirculated-air flap (on rear air conditioner)





Necessary preliminary tasks:
- Remove panel for luggage compartment partition .

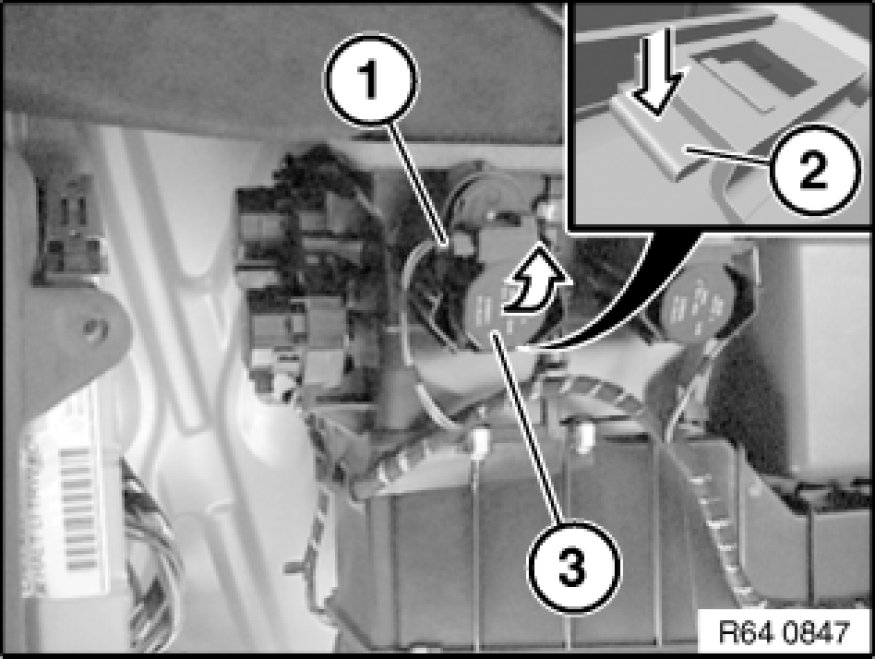

Disconnect plug connection (1).
Press lock (2) and unclip servodrive for recirculated-air flap (3) in direction of arrow.

Installation:
Follow repair instruction "Installing servodrive Installing Servodrive".
