Replacing Servodrive for Left Rear Compartment Flap (Automatic A/C High)

64 11 851 - Replacing servodrive for left rear compartment flap (automatic A/C High)





Necessary preliminary tasks:
- Remove servodrive for right rear compartment flap Replacing Servodrive for Right Rear Compartment Flap (Automatic A/C High)

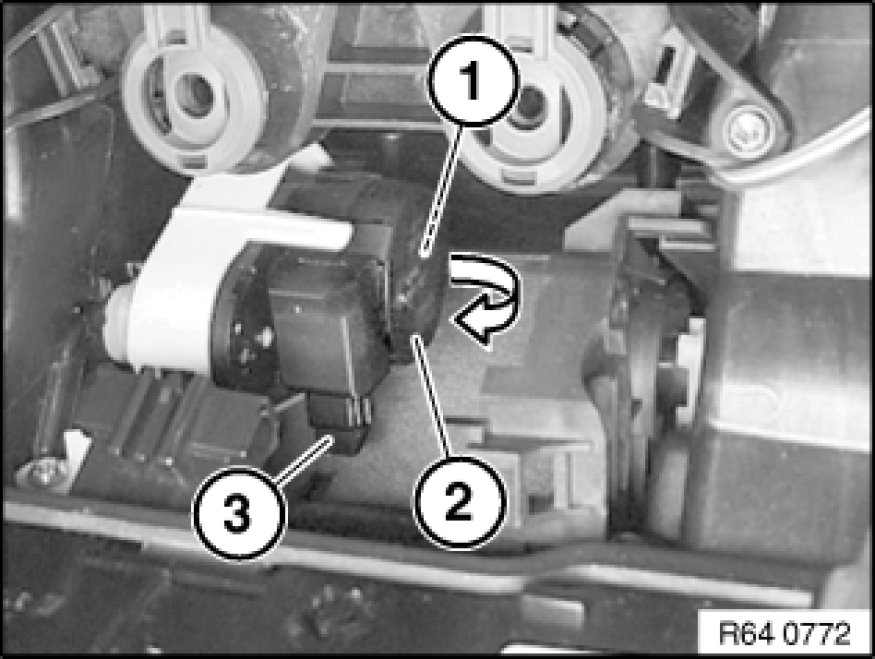

Press lock (1) and unclip servodrive for left rear compartment flap (2) in direction of arrow.
Disconnect plug connection (3) and remove servodrive for left rear compartment flap (2).

Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
