Replacing Servodrive for Left Cold Air Duct (Automatic A/C High)

64 11 816 - Replacing servodrive for left cold air duct (automatic A/C High)





Necessary preliminary tasks:
- Remove function carrier 51 16 170 - Removing and installing function carrier on panel for instrument panel on trim for instrument carrier

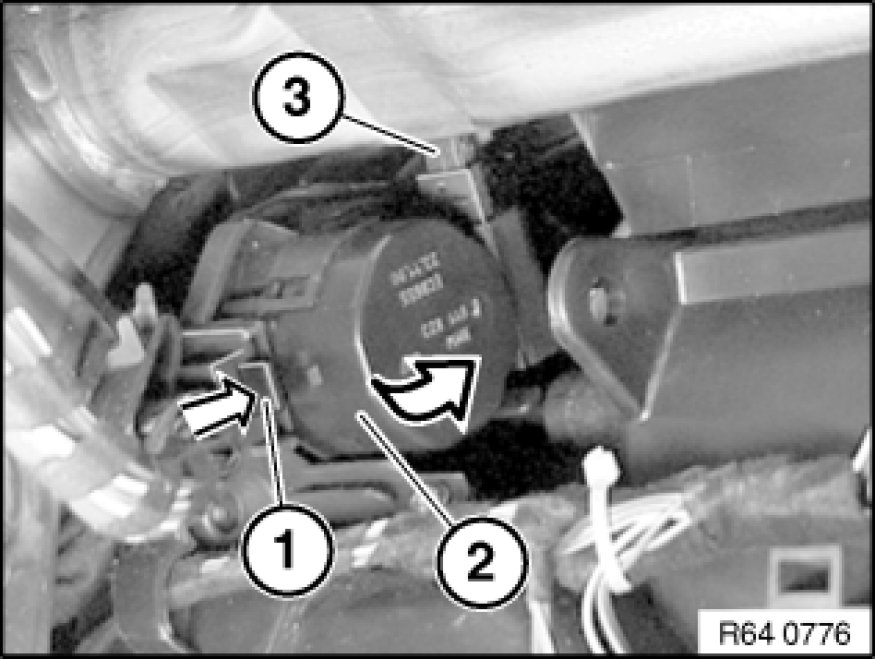

Press lock (1) and unclip servodrive (2) in direction of arrow.
Disconnect plug connection (3) and remove servodrive (2).

Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
