Replacing Servodrive for Fresh Air Flaps (Automatic A/C High)

64 11 821 - Replacing servodrive for fresh air flaps (automatic A/C High)





Necessary preliminary tasks:
- Remove holder with servodrive for recirculated air flaps Replacing Servodrive for Recirculated Air Flaps (Automatic A/C High)

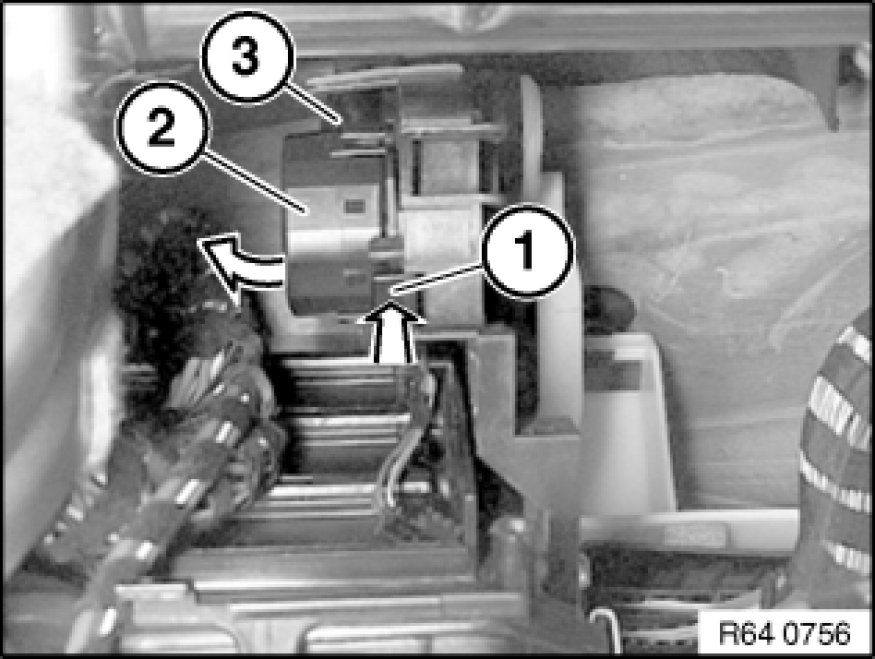

Press lock (1) and unclip servodrive (2) in direction of arrow.
Disconnect plug connection (3) and remove servodrive (2).

Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
