Replacing Servodrive for Footwell Flap (on Rear Air Conditioner)

64 11 862 - Replacing servodrive for footwell flap (on rear air conditioner)





Necessary preliminary tasks:
- Remove panel for luggage compartment partition .





Note:

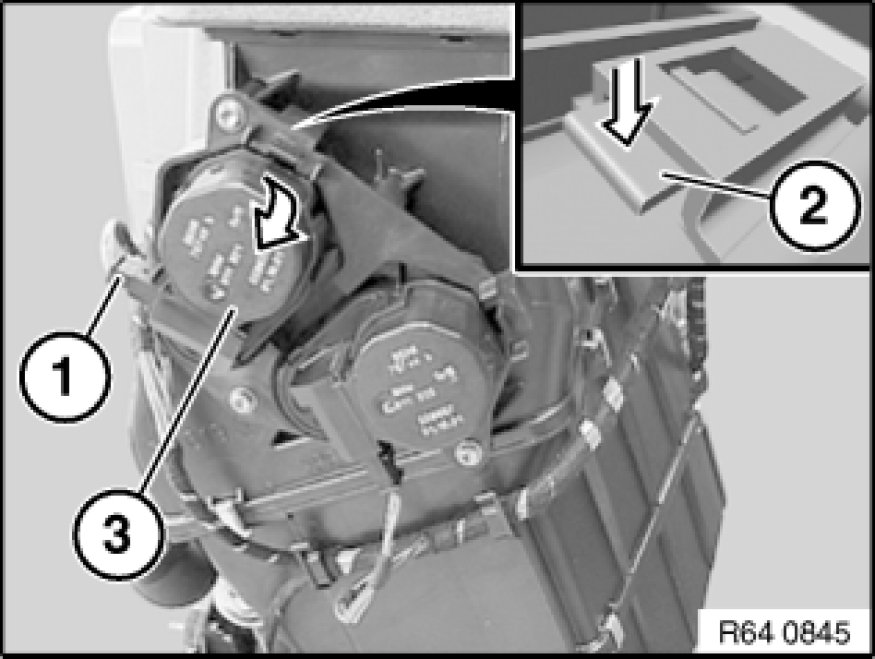

For purposes of clarity, illustration shows rear air conditioner removed.

Disconnect plug connection (1).

Press lock (2) and unclip servodrive for footwell flap (3) in direction of arrow.

Installation:
Follow repair instruction "Installing servodrive Installing Servodrive".
