Replacing Servodrive for Cold-Air Duct (on Rear Air Conditioner)

64 11 864 - Replacing servodrive for cold-air duct (on rear air conditioner)





Necessary preliminary tasks:
- Remove panel for luggage compartment partition .

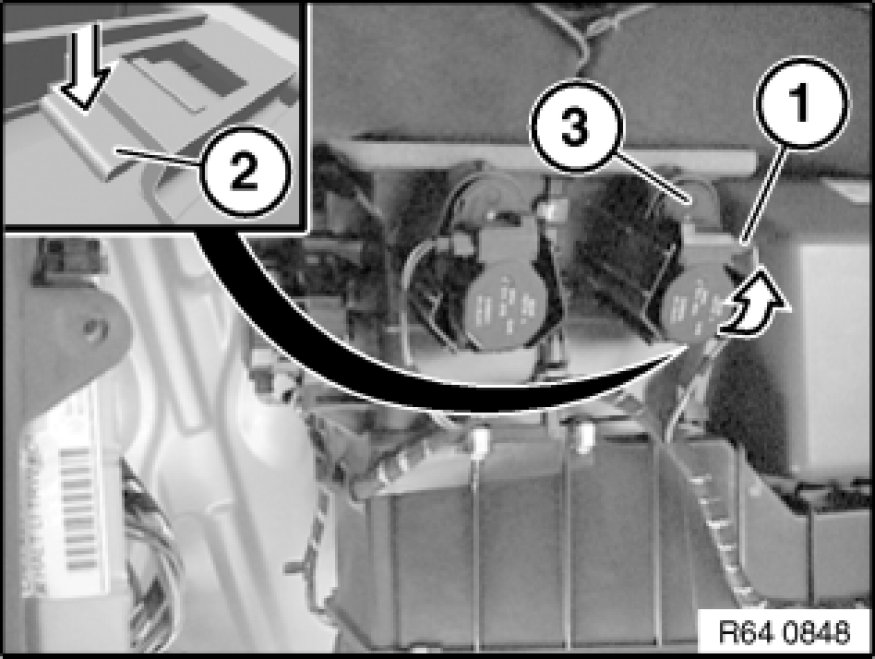

Disconnect plug connection (1).
Press lock (2) and unclip servodrive for cold-air duct (3) in direction of arrow.

Installation:
Follow repair instruction "Installing servodrive Installing Servodrive".
