Replacing Servodrive (Automatic A/C High) for Left Hot Air Flap

64 11 811 - Replacing servodrive (automatic A/C High) for left hot air flap





Necessary preliminary tasks:
- Remove instrument panel trim 51 45 030 Removing and Installing Instrument Panel Trim





Note:
For purposes of clarity, graphic shows heater removed.

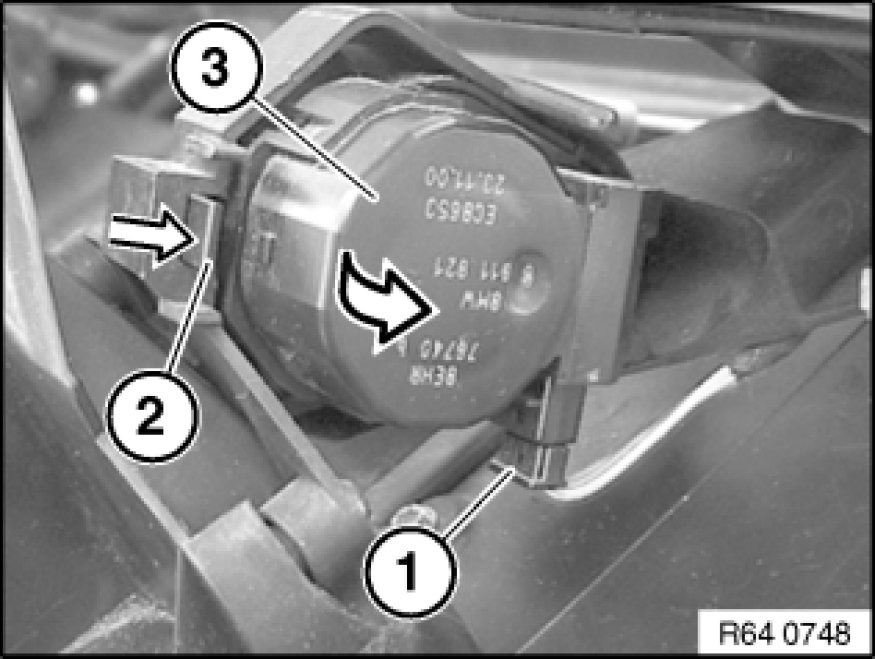

Disconnect plug connection (1).

Press lock (2) and unclip servodrive (3) in direction of arrow.

Installation:
If necessary, align shaft of flap(s) to be actuated to position of servodrive to be installed.
