Oil Cooler: Service and Repair

17 21 200 - Removing and installing/replacing engine oil cooler (N73)





Necessary preliminary tasks:
- Remove design cover
- Remove center front panel
- Remove radiator cover





Recycling:
Catch and dispose of emerging engine oil.
Observe country-specific waste-disposal regulations.

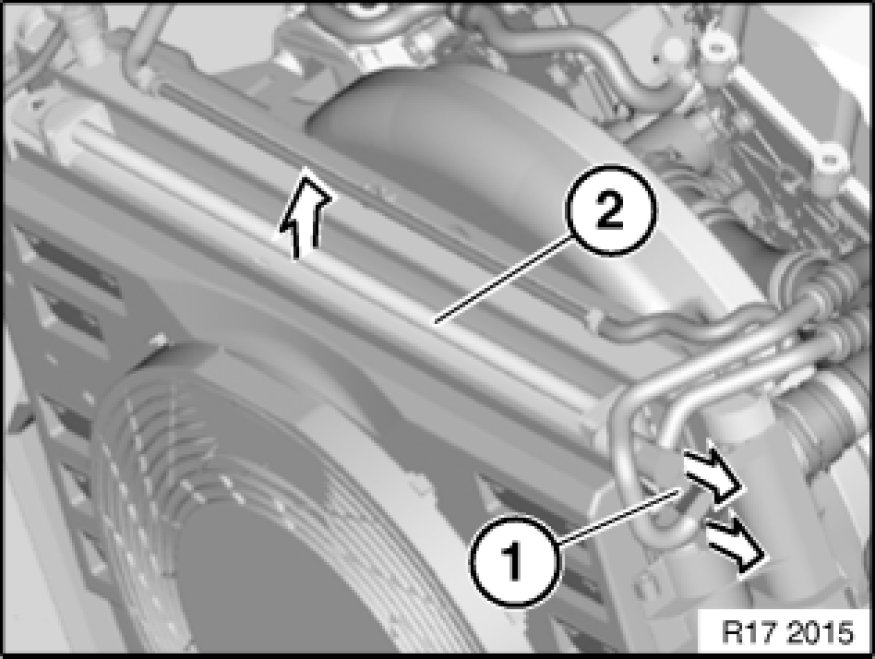

Unscrew bolt (1).
Remove both lines in direction of arrow.

Installation:
Replace O-rings.

Remove engine oil cooler (2) in direction of arrow.





Assemble vehicle.
Check engine oil and top up if necessary.
